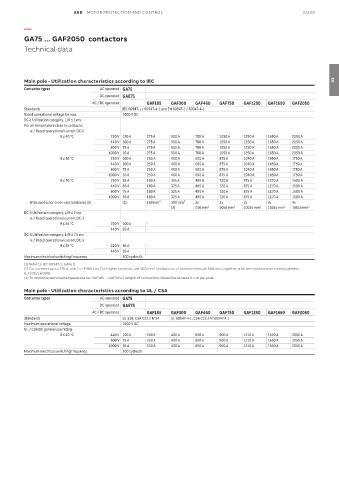

ABB MOTOR PROTECTION AND CONTROL 3/239

—

GA75 ... GAF2050 contactors
Technical data

Main pole - Utilization characteristics according to IEC 03
Contactor types AC operated GA75
DC operated GAE75
AC / DC operated GAF185 GAF300 GAF460 GAF750 GAF1250 GAF1650 GAF2050
Standards IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1
Rated operational voltage Ue max. 1000 V DC
DC-1 Utilization category, L/R ≤ 1 ms
For air temperature close to contactor
Ie / Rated operational current DC-1
θ ≤ 40 °C 220 V 120 A 275 A 500 A 700 A 1050 A 1250 A 1650 A 2050 A
440 V 100 A 275 A 500 A 700 A 1050 A 1250 A 1650 A 2050 A
600 V 75 A 275 A 500 A 700 A 1050 A 1250 A 1650 A 2050 A
1000 V 35 A 275 A 500 A 700 A 1050 A 1250 A 1650 A 2050 A
θ ≤ 55 °C 220 V 100 A 250 A 400 A 600 A 875 A 1040 A 1450 A 1750 A
440 V 100 A 250 A 400 A 600 A 875 A 1040 A 1450 A 1750 A
600 V 75 A 250 A 400 A 600 A 875 A 1040 A 1450 A 1750 A
1000 V 35 A 250 A 400 A 600 A 875 A 1040 A 1450 A 1750 A
θ ≤ 70 °C 220 V 85 A 180 A 325 A 480 A 720 A 875 A 1270 A 1500 A
440 V 85 A 180 A 325 A 480 A 720 A 875 A 1270 A 1500 A
600 V 75 A 180 A 325 A 480 A 720 A 875 A 1270 A 1500 A
1000 V 35 A 180 A 325 A 480 A 720 A 875 A 1270 A 1500 A
With conductor cross-sectional area (3) (1) 150 mm² 300 mm² 2x 2x 2x 3x 4x
(2) 240 mm² 50x8 mm² 100x5 mm² 100x5 mm² 100x5 mm²
DC-3 Utilization category, L/R ≤ 2 ms
Ie / Rated operational current DC-3
θ ≤ 55 °C 220 V 100 A -
440 V 85 A -
DC-5 Utilization category, L/R ≤ 7.5 ms
Ie / Rated operational current DC-5
θ ≤ 55 °C 220 V 85 A -
440 V 35 A -
Maximum electrical switching frequency 300 cycles/h
(1) Refer to IEC 60947-1, table 9.
(2) For currents up to 370 A, use 2 x LP300 kits.For higher currents, use 300 mm² conductors of minimum length 500 mm together with terminal extension/enlargement
(LX300/LW300).
(3) To minimize terminal temperature for GAF185 ... GAF2050, length of connection should be at least 0.5 m per pole.
Main pole - Utilization characteristics according to UL / CSA
Contactor types AC operated GA75
DC operated GAE75
AC / DC operated GAF185 GAF300 GAF460 GAF750 GAF1250 GAF1650 GAF2050
Standards UL 508, CSA C22.2 N°14 UL 60947-4-1, CSA C22.2 N°60947.4-1
Maximum operational voltage 1000 V DC
UL / CSA DC general use rating
θ ≤ 40 °C 440 V 100 A 250 A 400 A 650 A 900 A 1210 A 1650 A 2050 A
600 V 75 A 250 A 400 A 650 A 900 A 1210 A 1650 A 2050 A
1000 V 35 A 250 A 400 A 650 A 900 A 1210 A 1650 A 2050 A
Maximum electrical switching frequency 300 cycles/h
