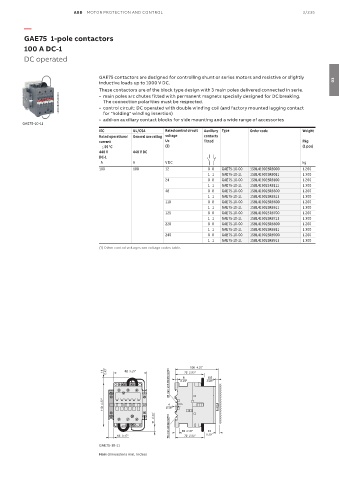

GAE75 1-pole contactors

100 A DC-1
DC operated

GAE75 contactors are designed for controlling shunt or series motors and resistive or slightly
inductive loads up to 1000 V DC. 03
These contactors are of the block type design with 3 main poles delivered connected in serie.
1SBC586554F0301 • control circuit: DC operated with double winding coil (and factory mounted lagging contact
• main poles arc chutes fitted with permanent magnets specially designed for DC breaking.
The connection polarities must be respected.
for "holding" winding insertion)
• add-on auxiliary contact blocks for side mounting and a wide range of accessories
GAE75-10-11
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use rating voltage contacts
current Uc fitted Pkg
θ ≤ 55 °C (1) (1 pce)
440 V 440 V DC
DC-1
A A V DC kg
100 100 12 0 0 GAE75-10-00 1SBL419025R8000 1.260
1 1 GAE75-10-11 1SBL419025R8011 1.300
24 0 0 GAE75-10-00 1SBL419025R8100 1.260
1 1 GAE75-10-11 1SBL419025R8111 1.300
48 0 0 GAE75-10-00 1SBL419025R8300 1.260
1 1 GAE75-10-11 1SBL419025R8311 1.300
110 0 0 GAE75-10-00 1SBL419025R8600 1.260
1 1 GAE75-10-11 1SBL419025R8611 1.300
125 0 0 GAE75-10-00 1SBL419025R8700 1.260
1 1 GAE75-10-11 1SBL419025R8711 1.300
220 0 0 GAE75-10-00 1SBL419025R8800 1.260
1 1 GAE75-10-11 1SBL419025R8811 1.300
240 0 0 GAE75-10-00 1SBL419025R8900 1.260
1 1 GAE75-10-11 1SBL419025R8911 1.300
(1) Other control voltages see voltage codes table.

108 4.25"
35 mm x15 EN/IEC 60715 0.24" 0.26"
11 0.43" 82 3.23" 6 72 2.83" 6.5

110 4.33" 0.16"
4
11 0.43"

10
12 0.47" 75 mm EN/IEC 60715 10 0.39" 0.39"
72 2.83"
GAE75-10-11
Main dimensions mm, inches
