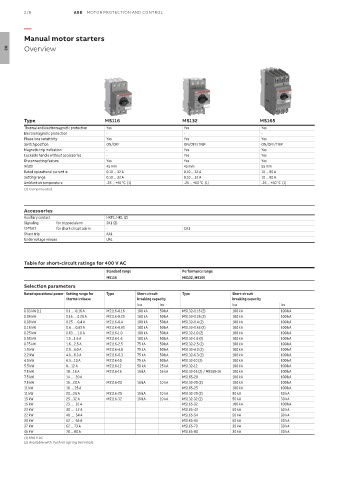

Page 34 - ABB_Motor _Protection_and_Control_catalogue_20221216

2/8 ABB MOTOR PROTECTION AND CONTROL

—
Manual motor starters

Overview
02

Type MS116 MS132 MS165
Thermal and electromagnetic protection Yes Yes Yes
Electromagnetic protection - - -
Phase loss sensitivity Yes Yes Yes
Switch position ON/OFF ON/OFF/TRIP ON/OFF/TRIP
Magnetic trip indication - Yes Yes
Lockable handle without accessories - Yes Yes
Disconnecting feature Yes Yes Yes
Width 45 mm 45 mm 55 mm
Rated operational current Ie 0.10 ... 32 A 0.10 ... 32 A 10 ... 80 A
Setting range 0.10 ... 32 A 0.10 ... 32 A 10 ... 80 A
Ambient air temperature -25 ... +55 °C (1) -25 ... +60 °C (1) -25 ... +60 °C (1)
(1) Compensated

Accessories
Auxiliary contact HKF1, HK1 (2)
Signaling for tripped alarm SK1 (2)
contact for short-circuit alarm - CK1
Shunt trip AA1
Undervoltage release UA1

Table for short-circuit ratings for 400 V AC
Standard range Performance range
MS116 MS132, MS165
Selection parameters
Rated operational power Setting range for Type Short-circuit Type Short-circuit
thermal release breaking capacity breaking capacity
Icu Ics Icu Ics
0.03 kW (1) 0.1 … 0.16 A MS116-0.16 100 kA 50 kA MS132-0.16 (2) 100 kA 100 kA
0.06 kW 0.16 … 0.25 A MS116-0.25 100 kA 50 kA MS132-0.25 (2) 100 kA 100 kA
0.09 kW 0.25 … 0.4 A MS116-0.4 100 kA 50 kA MS132-0.4 (2) 100 kA 100 kA
0.18 kW 0.4 … 0.63 A MS116-0.63 100 kA 50 kA MS132-0.63 (2) 100 kA 100 kA
0.25 kW 0.63 … 1.0 A MS116-1.0 100 kA 50 kA MS132-1.0 (2) 100 kA 100 kA
0.55 kW 1.0…1.6 A MS116-1.6 100 kA 50 kA MS132-1.6 (2) 100 kA 100 kA
0.75 kW 1.6…2.5 A MS116-2.5 75 kA 50 kA MS132-2.5 (2) 100 kA 100 kA
1.5 kW 2.5…4.0 A MS116-4.0 75 kA 50 kA MS132-4.0 (2) 100 kA 100 kA
2.2 kW 4.0…6.3 A MS116-6.3 75 kA 50 kA MS132-6.3 (2) 100 kA 100 kA
4.0 kW 6.3…10 A MS116-10 75 kA 50 kA MS132-10 (2) 100 kA 100 kA
5.5 kW 8…12 A MS116-12 50 kA 25 kA MS132-12 100 kA 100 kA
7.5 kW 10…16 A MS116-16 16 kA 16 kA MS132-16 (2) / MS165-16 100 kA 100 kA
7.5 kW 14 ... 20 A MS165-20 100 kA 100 kA
7.5 kW 16…20 A MS116-20 16 kA 10 kA MS132-20 (2) 100 kA 100 kA
11 kW 18 … 25 A MS165-25 100 kA 100 kA
11 kW 20…25 A MS116-25 16 kA 10 kA MS132-25 (2) 50 kA 50 kA
15 kW 25…32 A MS116-32 16 kA 10 kA MS132-32 (2) 50 kA 30 kA
15 kW 23 ... 32 A MS165-32 100 kA 100 kA
22 kW 30 ... 42 A MS165-42 50 kA 50 kA
22 kW 40 ... 54 A MS165-54 50 kA 30 kA
30 kW 52 ... 65 A MS165-65 50 kA 30 kA
37 kW 62 ... 73 A MS165-73 30 kA 30 kA
45 kW 70 ... 80 A MS165-80 30 kA 30 kA
(1) 690 V AC
(2) Available with Push-in Spring terminals.
