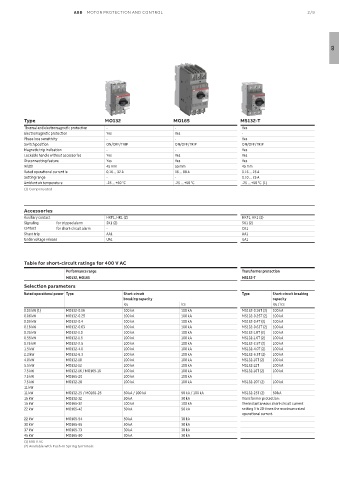

ABB MOTOR PROTECTION AND CONTROL 2/9

02

Type MO132 MO165 MS132-T
Thermal and electromagnetic protection - - Yes
Electromagnetic protection Yes Yes -
Phase loss sensitivity - - Yes
Switch position ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP
Magnetic trip indication - - Yes
Lockable handle without accessories Yes Yes Yes
Disconnecting feature Yes Yes Yes
Width 45 mm 55 mm 45 mm
Rated operational current Ie 0.16 ... 32 A 16 ... 80 A 0.16 ... 25 A
Setting range - - 0.10 ... 25 A
Ambient air temperature -25 ... +60 °C -25 ... +60 °C -25 ... +60 °C (1)
(1) Compensated

Accessories
Auxiliary contact HKF1, HK1 (2) HKF1, HK1 (2)
Signaling for tripped alarm SK1 (2) SK1 (2)
contact for short-circuit alarm - CK1
Shunt trip AA1 AA1
Undervoltage release UA1 UA1

Table for short-circuit ratings for 400 V AC
Performance range Transformer protection
MO132, MO165 MS132-T
Selection parameters
Rated operational power Type Short-circuit Type Short-circuit breaking
breaking capacity capacity
Icu Ics Icu / Ics
0.03 kW (1) MO132-0.16 100 kA 100 kA MS132-0.16T (2) 100 kA
0.06 kW MO132-0.25 100 kA 100 kA MS132-0.25T (2) 100 kA
0.09 kW MO132-0.4 100 kA 100 kA MS132-0.4T (2) 100 kA
0.18 kW MO132-0.63 100 kA 100 kA MS132-0.63T (2) 100 kA
0.25 kW MO132-1.0 100 kA 100 kA MS132-1.0T (2) 100 kA
0.55 kW MO132-1.6 100 kA 100 kA MS132-1.6T (2) 100 kA
0.75 kW MO132-2.5 100 kA 100 kA MS132-2.5T (2) 100 kA
1.5 kW MO132-4.0 100 kA 100 kA MS132-4.0T (2) 100 kA
2.2 kW MO132-6.3 100 kA 100 kA MS132-6.3T (2) 100 kA
4.0 kW MO132-10 100 kA 100 kA MS132-10T (2) 100 kA
5.5 kW MO132-12 100 kA 100 kA MS132-12T 100 kA
7.5 kW MO132-16 / MO165-16 100 kA 100 kA MS132-16T (2) 100 kA
7.5 kW MO165-20 100 kA 100 kA
7.5 kW MO132-20 100 kA 100 kA MS132-20T (2) 100 kA
11 kW
11 kW MO132-25 / MO165-25 50 kA / 100 kA 50 kA / 100 kA MS132-25T (2) 50 kA
15 kW MO132-32 50 kA 30 kA Transformer protection:
15 kW MO165-32 100 kA 100 kA The instantaneous short-circuit current
22 kW MO165-42 50 kA 50 kA setting li is 20 times the maximum rated
operational current.
22 kW MO165-54 50 kA 30 kA
30 kW MO165-65 50 kA 30 kA
37 kW MO165-73 30 kA 30 kA
45 kW MO165-80 30 kA 30 kA
(1) 690 V AC
(2) Available with Push-in Spring terminals.
