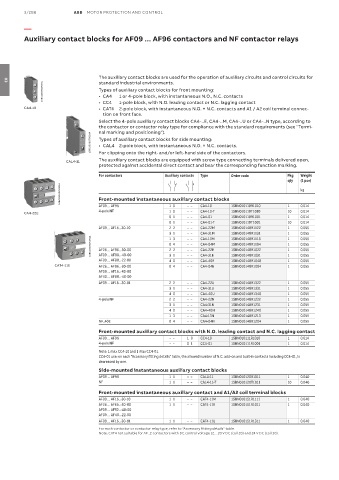

3/288 ABB MOTOR PROTECTION AND CONTROL

—

Auxiliary contact blocks for AF09 ... AF96 contactors and NF contactor relays

The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for
standard industrial environments.
1SBC100001V0014 Types of auxiliary contact blocks for front mounting:
03
• CA4
1 or 4-pole block, with instantaneous N.O., N.C. contacts
CA4-10 • CC4 1-pole block, with N.O. leading contact or N.C. lagging contact
• CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connec-
tion on front face.
Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to
the contactor or contactor relay type for compliance with the standard requirements (see "Termi-
nal marking and positioning").
1SBC100007V0014 Types of auxiliary contact blocks for side mounting:
• CAL4 2-pole block, with instantaneous N.O. + N.C. contacts.

The auxiliary contact blocks are equipped with screw type connecting terminals delivered open,
CAL4-11 For clipping onto the right- and/or left-hand side of the contactors.
protected against accidental direct contact and bear the corresponding function marking.
For contactors Auxiliary contacts Type Order code Pkg Weight
qty (1 pce)
1SBC100006V0014 Front-mounted instantaneous auxiliary contact blocks kg

AF09 ... AF96 1 0 – – CA4-10 1SBN010110R1010 1 0.014
4-pole NF 1 0 – – CA4-10-T 1SBN010110T1010 10 0.014
CA4-22E
0 1 – – CA4-01 1SBN010110R1001 1 0.014
0 1 – – CA4-01-T 1SBN010110T1001 10 0.014
AF09 ... AF16..-30-10 2 2 – – CA4-22M 1SBN010140R1122 1 0.055
3 1 – – CA4-31M 1SBN010140R1131 1 1 0.055
1SBC100002V0014 AF26 ... AF96..-30-00 0 4 – – CA4-04M 1SBN010140R1104 1 1 0.055
1 3
0.055
1SBN010140R1113
CA4-13M
– –
0.055
– –
2 2
CA4-22E
1SBN010140R1022
AF09 ... AF80..-40-00
AF09 ... AF80..-22-00 3 1 – – CA4-31E 1SBN010140R1031 1 1 0.055
– –
CA4-40E
4 0
0.055
1SBN010140R1040
CAT4-11E AF26 ... AF96..-30-00 0 4 – – CA4-04E 1SBN010140R1004 1 0.055
AF09 ... AF16..-40-00
AF40 ... AF80..-40-00
AF09 ... AF16..-30-01 2 2 – – CA4-22U 1SBN010140R1322 1 0.055
3 1 – – CA4-31U 1SBN010140R1331 1 0.055
4 0 – – CA4-40U 1SBN010140R1340 1 0.055
4-pole NF 2 2 – – CA4-22N 1SBN010140R1222 1 0.055
3 1 – – CA4-31N 1SBN010140R1231 1 0.055
4 0 – – CA4-40N 1SBN010140R1240 1 0.055
1 3 – – CA4-13N 1SBN010140R1213 1 0.055
NF..40E 0 4 – – CA4-04N 1SBN010140R1204 1 0.055
Front-mounted auxiliary contact blocks with N.O. leading contact and N.C. lagging contact
AF09 ... AF96 – – 1 0 CC4-10 1SBN010111R1010 1 0.014
4-pole NF – – 0 1 CC4-01 1SBN010111R1001 1 0.014
Note: 1 max CC4-10 and 1 max CC4-01.
CC4-01 use: on each "Accessory fitting details" table, the allowed number of N.C. add-on and built-in contacts including CC4-01, is
decreased by one.
Side-mounted instantaneous auxiliary contact blocks
AF09 ... AF96 1 1 – – CAL4-11 1SBN010120R1011 1 0.040
NF 1 1 – – CAL4-11-T 1SBN010120T1011 10 0.040
Front-mounted instantaneous auxiliary contact and A1/A2 coil terminal blocks
AF09 ... AF16..-30-10 1 1 – – CAT4-11M 1SBN010151R1111 1 0.040
AF26 ... AF65..-30-00 1 1 – – CAT4-11E 1SBN010151R1011 1 0.040
AF09 ... AF52..-40-00
AF09 ... AF40..-22-00
AF09 ... AF16..-30-01 1 1 – – CAT4-11U 1SBN010151R1311 1 0.040
For each contactor or contactor relay type, refer to "Accessory fitting details" table.
Note: CAT4 not suitable for AF..Z contactors with DC control voltage 12…20 V DC (coil 20) and 24 V DC (coil 30).
