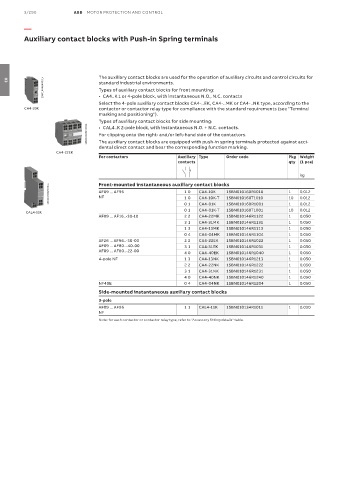

3/290 ABB MOTOR PROTECTION AND CONTROL

—

Auxiliary contact blocks with Push-in Spring terminals

The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for
1SBC100080V0014 standard industrial environments.
03
Types of auxiliary contact blocks for front mounting:
• CA4..K 1 or 4-pole block, with instantaneous N.O., N.C. contacts
Select the 4-pole auxiliary contact blocks CA4-..EK, CA4-..MK or CA4-..NK type, according to the
CA4-10K contactor or contactor relay type for compliance with the standard requirements (see "Terminal
marking and positioning").
Types of auxiliary contact blocks for side mounting:
1SBC100081V0014 For clipping onto the right- and/or left-hand side of the contactors.
• CAL4..K 2-pole block, with instantaneous N.O. + N.C. contacts.
The auxiliary contact blocks are equipped with push-in spring terminals protected against acci-
dental direct contact and bear the corresponding function marking.
CA4-22EK
For contactors Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)

kg
Front-mounted instantaneous auxiliary contact blocks
1SBC100082V0014 AF09 ... AF96 1 0 CA4-10K 1SBN010160R1010 1 10 0.012
NF
1SBN010160T1010
0.012
CA4-10K-T
1 0
0 1
0 1 CA4-01K 1SBN010160R1001 1 10 0.012
CA4-01K-T
0.012
1SBN010160T1001
CAL4-11K
AF09 ... AF16..-30-10 2 2 CA4-22MK 1SBN010146R1122 1 0.050
3 1 CA4-31MK 1SBN010146R1131 1 0.050
1 3 CA4-13MK 1SBN010146R1113 1 0.050
0 4 CA4-04MK 1SBN010146R1104 1 0.050
AF26 ... AF96..-30-00 2 2 CA4-22EK 1SBN010146R1022 1 0.050
AF09 ... AF80..-40-00 3 1 CA4-31EK 1SBN010146R1031 1 0.050
AF09 ... AF80..-22-00
4 0 CA4-40EK 1SBN010146R1040 1 0.050
4-pole NF 1 3 CA4-13NK 1SBN010146R1213 1 0.050
2 2 CA4-22NK 1SBN010146R1222 1 0.050
3 1 CA4-31NK 1SBN010146R1231 1 0.050
4 0 CA4-40NK 1SBN010146R1240 1 0.050
NF40E 0 4 CA4-04NK 1SBN010146R1204 1 0.050
Side-mounted instantaneous auxiliary contact blocks
3-pole
AF09 ... AF96 1 1 CAL4-11K 1SBN010134R1011 1 0.030
NF
Note: for each contactor or contactor relay type, refer to "Accessory fitting details" table.
