3/340 ABB MOTOR PROTECTION AND CONTROL

—

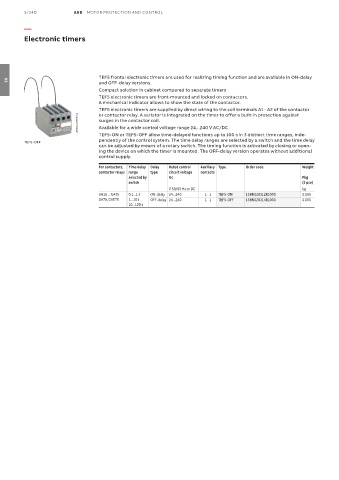

Electronic timers

TEF5 frontal electronic timers are used for realizing timing function and are available in ON-delay
and OFF-delay versions.
03
Compact solution in cabinet compared to separate timers
TEF5 electronic timers are front-mounted and locked on contactors.
A mechanical indicator allows to show the state of the contactor.
TEF5 electronic timers are supplied by direct wiring to the coil terminals A1 - A2 of the contactor
or contactor relay. A varistor is integrated on the timer to offer a built-in protection against
1SBC101396F0014 surges in the contactor coil.
Available for a wide control voltage range 24...240 V AC/DC
TEF5-ON or TEF5-OFF allow time-delayed functions up to 100 s in 3 distinct time ranges, inde-
pendently of the control system. The time delay ranges are selected by a switch and the time delay
TEF5-OFF
can be adjusted by means of a rotary switch. The timing function is activated by closing or open-
ing the device on which the timer is mounted. The OFF-delay version operates without additional
control supply.
For contactors, Time delay Delay Rated control Auxiliary Type Order code Weight
contactor relays range type circuit voltage contacts
selected by Uc Pkg
switch (1 pce)
V 50/60 Hz or DC kg
UA16 ... UA75 0.1...1 s ON-delay 24...240 1 1 TEF5-ON 1SBN020312R1000 0.065
GA75, GAE75 1...10 s OFF-delay 24...240 1 1 TEF5-OFF 1SBN020314R1000 0.065
10...100 s
