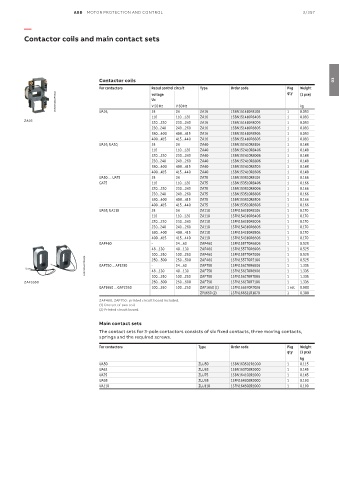

Page 433 - ABB_Motor _Protection_and_Control_catalogue_20221216

ABB MOTOR PROTECTION AND CONTROL 3/357

—

Contactor coils and main contact sets

Contactor coils 03
For contactors Rated control circuit Type Order code Pkg Weight
qty
1SBC573802F0302 Uc V 60 Hz kg
voltage
(1 pce)
V 50 Hz
24
UA16,
110 24 ZA16 1SBN151410R8106 1 1 0.093
110…120
1SBN151410R8406
ZA16
0.093
ZA16
220…230 230…240 ZA16 1SBN151410R8006 1 0.093
230...240 240…260 ZA16 1SBN151410R8806 1 0.093
380…400 400…415 ZA16 1SBN151410R8506 1 0.093
400…415 415…440 ZA16 1SBN151410R8606 1 0.093
UA26, UA30, 24 24 ZA40 1SBN152410R8106 1 0.148
110 110…120 ZA40 1SBN152410R8406 1 0.148
220…230 230…240 ZA40 1SBN152410R8006 1 0.148
230...240 240…260 ZA40 1SBN152410R8806 1 0.148
380…400 400…415 ZA40 1SBN152410R8506 1 0.148
400…415 415…440 ZA40 1SBN152410R8606 1 0.148
UA50 … UA75 24 24 ZA75 1SBN153510R8106 1 0.166
GA75 110 110…120 ZA75 1SBN153510R8406 1 0.166
220…230 230…240 ZA75 1SBN153510R8006 1 0.166
230...240 240…260 ZA75 1SBN153510R8806 1 0.166
380…400 400…415 ZA75 1SBN153510R8506 1 0.166
400…415 415…440 ZA75 1SBN153510R8606 1 0.166
UA95, UA110 24 24 ZA110 1SFN154310R8106 1 0.170
110 110…120 ZA110 1SFN154310R8406 1 0.170
220…230 230…240 ZA110 1SFN154310R8006 1 0.170
230...240 240…260 ZA110 1SFN154310R8806 1 0.170
380…400 400…415 ZA110 1SFN154310R8506 1 0.170
400…415 415…440 ZA110 1SFN154310R8606 1 0.170
GAF460 - 24…60 ZAF460 1SFN155770R6806 1 0.525
48…130 48…130 ZAF460 1SFN155770R6906 1 0.525
100…250 100…250 ZAF460 1SFN155770R7006 1 1 0.525
1SFC101007F0201 GAF750 ... AF1250 - 48…130 24…60 ZAF750 1SFN156170R6806 1 1 1.335
250…500
250…500
1SFN155770R7106
0.525
ZAF460
48…130
1.335
ZAF750
1SFN156170R6906
100…250 100…250 ZAF750 1SFN156170R7006 1 1.335
ZAF1650 250…500 250…500 ZAF750 1SFN156170R7106 1 1.335
GAF1650 ... GAF2050 100…250 100…250 ZAF1650 (1) 1SFN156570R7026 1 set 0.900
ZP1650 (2) 1SFN166521R1070 1 0.300
ZAF460, ZAF750 : printed circuit board included.
(1) One set of two coil.
(2) Printed circuit board.
Main contact sets
The contact sets for 3-pole contactors consists of six fixed contacts, three moving contacts,
springs and the required screws.
For contactors Type Order code Pkg Weight
qty (1 pce)
kg
UA50 ZLU50 1SBN163502R1000 1 0.115
UA63 ZLU63 1SBN163702R1000 1 0.145
UA75 ZLU75 1SBN164102R1000 1 0.145
UA95 ZLU95 1SFN164302R1000 1 0.190
UA110 ZLU110 1SFN164502R1000 1 0.190
