3/368 ABB MOTOR PROTECTION AND CONTROL

—

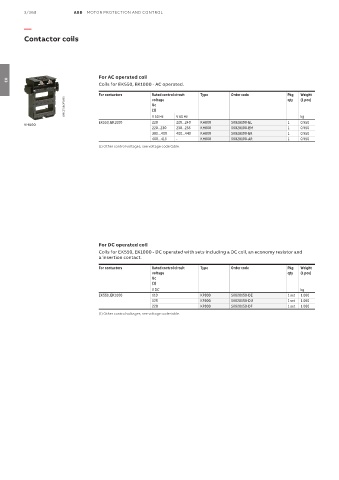

Contactor coils

For AC operated coil
Coils for EK550, EK1000 - AC operated.
03
For contactors Rated control circuit Type Order code Pkg Weight
1SBC273813F0302 Uc
qty
(1 pce)
voltage
(1)
220
0.950
220...240
EK550, EK1000 V 50 Hz V 60 Hz KH800 SK828100-EL 1 kg
KH800
220...230 230...255 KH800 SK828100-EM 1 0.950
380…400 400...440 KH800 SK828100-ER 1 0.950
400…415 - KH800 SK828100-AR 1 0.950
(1) Other control voltages, see voltage code table.

For DC operated coil
Coils for EK550, EK1000 - DC operated with sets including a DC coil, an economy resistor and
a insertion contact.
For contactors Rated control circuit Type Order code Pkg Weight
voltage qty (1 pce)
Uc
(1)
V DC kg
EK550, EK1000 110 KP800 SK828150-DE 1 set 1.060
125 KP800 SK828150-DU 1 set 1.060
220 KP800 SK828150-DF 1 set 1.060
(1) Other control voltages, see voltage code table.
