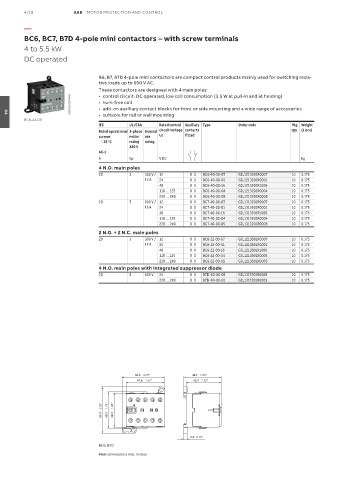

4/18 ABB MOTOR PROTECTION AND CONTROL

—
BC6, BC7, B7D 4-pole mini contactors – with screw terminals

4 to 5.5 kW
DC operated

B6, B7, B7D 4-pole mini contactors are compact control products mainly used for switching resis-
tive loads up to 690 V AC.
These contactors are designed with 4 main poles:
• control circuit: DC operated, low coil consumption (3.5 W at pull-in and at holding)
2CDC211032F0011 • hum-free coil
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
04
BC6-22-00 • suitable for rail or wall mounting
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
current motor use Uc fitted
θ ≤ 55 °C rating rating
480 V
AC-1
A hp V DC kg
4 N.O. main poles
20 3 300 V / 12 0 0 BC6-40-00-07 GJL1213201R0007 10 0.175
12 A 24 0 0 BC6-40-00-01 GJL1213201R0001 10 0.175
48 0 0 BC6-40-00-16 GJL1213201R1006 10 0.175
110 … 125 0 0 BC6-40-00-04 GJL1213201R0004 10 0.175
220 … 240 0 0 BC6-40-00-05 GJL1213201R0005 10 0.175
20 5 600 V / 12 0 0 BC7-40-00-07 GJL1313201R0007 10 0.175
16 A 24 0 0 BC7-40-00-01 GJL1313201R0001 10 0.175
48 0 0 BC7-40-00-16 GJL1313201R1006 10 0.175
110 … 125 0 0 BC7-40-00-04 GJL1313201R0004 10 0.175
220 … 240 0 0 BC7-40-00-05 GJL1313201R0005 10 0.175
2 N.O. + 2 N.C. main poles
20 3 300 V / 12 0 0 BC6-22-00-07 GJL1213501R0007 10 0.175
12 A 24 0 0 BC6-22-00-01 GJL1213501R0001 10 0.175
48 0 0 BC6-22-00-16 GJL1213501R1006 10 0.175
110 … 125 0 0 BC6-22-00-04 GJL1213501R0004 10 0.175
220 … 240 0 0 BC6-22-00-05 GJL1213501R0005 10 0.175
4 N.O. main poles with integrated suppressor diode
20 5 600 V 24 0 0 B7D-40-00-05 GJL1317201R0005 10 0.175
220 … 240 0 0 B7D-40-00-01 GJL1317201R0001 10 0.175

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

4.5 0.18"
BC6, B7D
Main dimensions mm, inches
