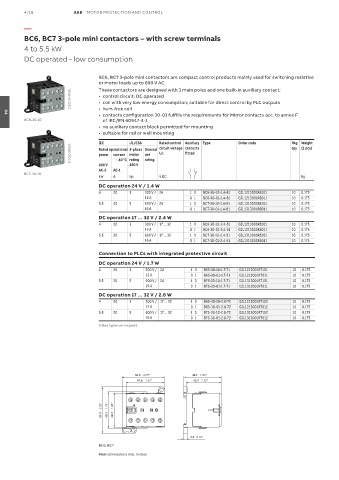

BC6, BC7 3-pole mini contactors – with screw terminals

4 to 5.5 kW
DC operated - low consumption

BC6, BC7 3-pole mini contactors are compact control products mainly used for switching resistive
or motor loads up to 690 V AC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
2CDC211040F0011 • control circuit: DC operated
• coil with very low energy consumption; suitable for direct control by PLC outputs
• hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
04
BC6-30-10 of IEC/EN 60947-4-1
• no auxiliary contact block permitted for mounting
• suitable for rail or wall mounting
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
2CDC211013F0011 Rated operational 3-phase General Uc fitted
circuit voltage contacts
qty
(1 pce)
motor
use
current
power
rating
rating
θ ≤ 40 °C
400 V
AC-3 AC-1 480 V
BC7-30-10
kW A hp V DC kg
DC operation 24 V / 1.4 W
4 20 3 300 V / 24 1 0 BC6-30-10-1.4-81 GJL1213001R8101 10 0.175
12 A 0 1 BC6-30-01-1.4-81 GJL1213001R8011 10 0.175
5.5 20 5 600 V / 24 1 0 BC7-30-10-1.4-81 GJL1313001R8101 10 0.175
16 A 0 1 BC7-30-01-1.4-81 GJL1313001R8011 10 0.175
DC operation 17 … 32 V / 2.4 W
4 20 3 300 V / 17 ... 32 1 0 BC6-30-10-2.4-51 GJL1213001R5101 10 0.175
12 A 0 1 BC6-30-01-2.4-51 GJL1213001R5011 10 0.175
5.5 20 5 600 V / 17 ... 32 1 0 BC7-30-10-2.4-51 GJL1313001R5101 10 0.175
16 A 0 1 BC7-30-01-2.4-51 GJL1313001R5011 10 0.175
Connection to PLCs with integrated protective circuit
DC operation 24 V / 1.7 W
4 20 3 300 V / 24 1 0 B6S-30-10-1.7-71 GJL1213001R7101 10 0.175
12 A 0 1 B6S-30-01-1.7-71 GJL1213001R7011 10 0.175
5.5 20 5 600 V / 24 1 0 B7S-30-10-1.7-71 GJL1313001R7101 10 0.175
16 A 0 1 B7S-30-01-1.7-71 GJL1313001R7011 10 0.175
DC operation 17 … 32 V / 2.8 W
4 20 3 300 V / 17 ... 32 1 0 B6S-30-10-2.8-72 GJL1213001R7102 10 0.175
12 A 0 1 B6S-30-01-2.8-72 GJL1213001R7012 10 0.175
5.5 20 5 600 V / 17 ... 32 1 0 B7S-30-10-2.8-72 GJL1313001R7102 10 0.175
16 A 0 1 B7S-30-01-2.8-72 GJL1313001R7012 10 0.175
Other types on request

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

4.5 0.18"
BC6, BC7
Main dimensions mm, inches
