ABB MOTOR PROTECTION AND CONTROL 4/27

—

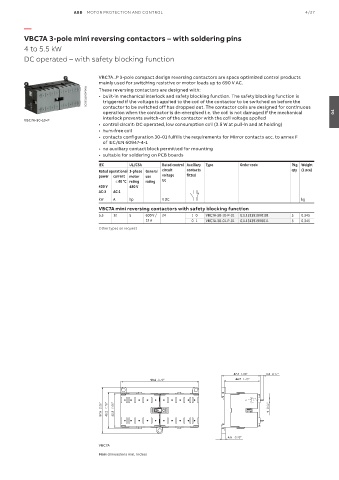

VBC7A 3-pole mini reversing contactors – with soldering pins

4 to 5.5 kW
DC operated – with safety blocking function

VBC7A..P 3-pole compact design reversing contactors are space optimized control products
mainly used for switching resistive or motor loads up to 690 V AC.
2CDC211009F0011 • built-in mechanical interlock and safety blocking function. The safety blocking function is
These reversing contactors are designed with:
triggered if the voltage is applied to the coil of the contactor to be switched on before the
contactor to be switched off has dropped out. The contactor coils are designed for continuous
operation when the contactor is de-energised i.e. the coil is not damaged if the mechanical
interlock prevents switch-on of the contactor with the coil voltage applied 04
VBC7A-30-10-P
• control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
• hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
• no auxiliary contact block permitted for mounting
• suitable for soldering on PCB boards

IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit contacts qty (1 pce)
power current motor use voltage fitted
θ ≤ 40 °C rating rating Uc
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
VBC7A mini reversing contactors with safety blocking function
5.5 12 5 600 V / 24 1 0 VBC7A-30-10-P-01 GJL1313919R0101 5 0.345
12 A 0 1 VBC7A-30-01-P-01 GJL1313919R0011 5 0.345
Other types on request

47.7 1.88" 4.3 0.17"
96.2 3.79" 44.7 1.76"

57.5 2.26" 45.2 1.78" 42.2 1.66" 1 0.04"

4.5 0.18"
VBC7A
Main dimensions mm, inches
