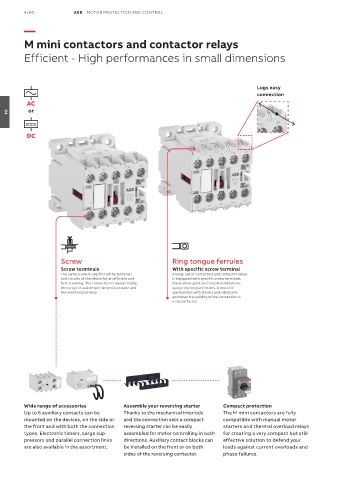

Page 608 - ABB_Motor _Protection_and_Control_catalogue_20221216

4/60 ABB MOTOR PROTECTION AND CONTROL

—

M mini contactors and contactor relays

Efficient - High performances in small dimensions

Lugs easy
connection
AC
or
04

DC

Screw Ring tongue ferrules
Screw terminals With specific screw terminal
The same screw is used for all the terminals A large set of contactors and contactor relays
and circuits of the device for an efficient and is equipped with specific screw terminals;
fast screwing. The connection is always stable, these allow quick and simple installations
the range of usable wire dimensions wide and using ring tongue ferrules. A must for
the maintenance easy. applications with shocks and vibrations
and when the solidity of the connection is
a crucial factor.

Wide range of accessories Assemble your reversing starter Compact protection
Up to 6 auxiliary contacts can be Thanks to the mechanical interlock The M mini contactors are fully
mounted on the devices, on the side or and the connection sets a compact compatible with manual motor
the front and with both the connection reversing starter can be easily starters and thermal overload relays
types. Electronic timers, surge sup- assembled for motor controlling in both for creating a very compact but still
pressors and parallel connection links directions. Auxiliary contact blocks can effective solution to defend your
are also available in the assortment. be installed on the front or on both loads against current overloads and
sides of the reversing contactor. phase failures.
