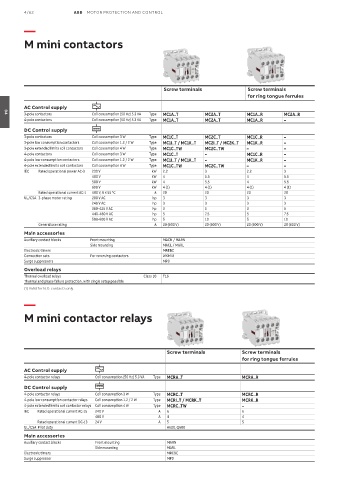

Page 610 - ABB_Motor _Protection_and_Control_catalogue_20221216

4/62 ABB MOTOR PROTECTION AND CONTROL

—

M mini contactors

Screw terminals Screw terminals
for ring tongue ferrules

AC Control supply
3-pole contactors Coil consumption (50 Hz) 5.3 VA Type MC1A..T MC2A..T MC1A..R MC2A..R
04
4-pole contactors Coil consumption (50 Hz) 5.3 VA Type MC1A..T MC2A..T MC1A..R –
DC Control supply
3-pole contactors Coil consumption 3 W Type MC1C..T MC2C..T MC1C..R –
3-pole low consumption contactors Coil consumption 1.2 / 2 W Type MC1I..T / MC1K..T MC2I..T / MC2K..T MC1K..R –
3-pole extended limits coil contactors Coil consumption 4 W Type MC1C..TW MC2C..TW – –
4-pole contactors Coil consumption 3 W Type MC1C..T – MC1C..R –
4-pole low consumption contactors Coil consumption 1.2 / 2 W Type MC1I..T / MC1K..T – MC1K..R –
4-pole extended limits coil contactors Coil consumption 4 W Type MC1C..TW MC2C..TW – –
IEC Rated operational power AC-3 230 V kW 2.2 3 2.2 3
400 V kW 4 5.5 4 5.5
500 V kW 4 5.5 4 5.5
690 V kW 4 (1) 4 (1) 4 (1) 4 (1)
Rated operational current AC-1 400 V, θ ≤ 55 °C A 20 20 20 20
UL/CSA 3-phase motor rating 200 V AC hp 3 3 3 3
240 V AC hp 3 3 3 3
380-425 V AC hp 3 5 3 5
440-480 V AC hp 5 7.5 5 7.5
500-600 V AC hp 5 10 5 10
General use rating A 20 (600 V) 20 (600 V) 20 (600 V) 20 (600 V)
Main accessories
Auxiliary contact blocks Front mounting MACN / MARN
Side mounting MACL / MARL
Electronic timers MREBC
Connection sets For reversing contactors WKMIU
Surge suppressors MP0
Overload relays
Thermal overload relays Class 10 T16
Thermal and phase failure protection, with single setup possible
(1) Valid for N.O. contacts only.
—

M mini contactor relays

Screw terminals Screw terminals
for ring tongue ferrules
AC Control supply
4-pole contactor relays Coil consumption (50 Hz) 5.3 VA Type MCRA..T MCRA..R
DC Control supply
4-pole contactor relays Coil consumption 3 W Type MCRC..T MCRC..R
4-pole low consumption contactor relays Coil consumption 1.2 / 2 W Type MCRI..T / MCRK..T MCRK..R
4-pole extended limits coil contactor relays Coil consumption 4 W Type MCRC..TW –
IEC Rated operational current AC-15 240 V A 6 6
400 V A 4 4
Rated operational current DC-13 24 V A 5 5
UL/CSA Pilot duty A600, Q600
Main accessories
Auxiliary contact blocks Front mounting MARN
Side mounting MARL
Electronic timers MREBC
Surge suppressor MP0
