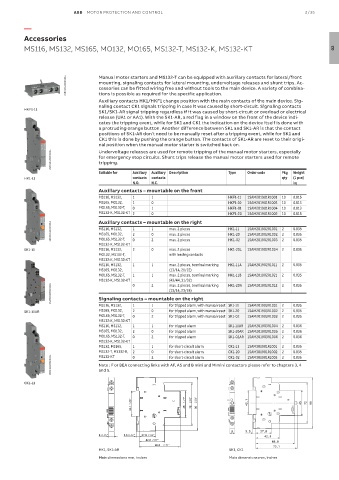

Page 61 - ABB_Motor _Protection_and_Control_catalogue_20221216

ABB MOTOR PROTECTION AND CONTROL 2/35

—
Accessories

MS116, MS132, MS165, MO132, MO165, MS132-T, MS132-K, MS132-KT 02

1SBC101208F0014 Manual motor starters and MS132-T can be equipped with auxiliary contacts for lateral/front
mounting, signaling contacts for lateral mounting, undervoltage releases and shunt trips. Ac-
cessories can be fitted wiring free and without tools to the main device. A variety of combina-
tions is possible as required for the specific application.
Auxiliary contacts HK1/HKF1 change position with the main contacts of the main device. Sig-
naling contact CK1 signals tripping in case it was caused by short-circuit. Signaling contacts
HKF1-11
SK1/SK1-AR signal tripping regardless if it was caused by short-circuit or overload or electrical
release (UA1 or AA1). With the SK1-AR, a red flag in a window on the front of the device indi-
cates the tripping event, while for SK1 and CK1 the indication on the device itself is done with
a protruding orange button. Another difference between SK1 and SK1-AR is that the contact
positions of SK1-AR don't need to be manually reset after a tripping event, while for SK1 and
CK1 this is done by pushing the orange button. The contacts of SK1-AR are reset to their origi-
nal position when the manual motor starter is switched back on.
Undervoltage releases are used for remote tripping of the manual motor starters, especially
1SBC101209F0014 for emergency stop circuits. Shunt trips release the manual motor starters used for remote
tripping.
Suitable for Auxiliary Auxiliary Description Type Order code Pkg Weight
HK1-11 contacts contacts qty (1 pce)
N.O. N.C. kg
Auxiliary contacts – mountable on the front
MS116, MS132, 1 1 HKF1-11 1SAM201901R1001 10 0.015
MS165, MO132, 1 0 HKF1-10 1SAM201901R1003 10 0.013
MO165, MS132-T, 0 1 HKF1-01 1SAM201901R1004 10 0.013
MS132-K, MS132-KT 2 0 HKF1-20 1SAM201901R1002 10 0.015
Auxiliary contacts – mountable on the right
1SBC101210F0014 MS116, MS132, 1 2 1 0 max. 2 pieces HK1-11 1SAM201902R1001 2 2 0.035
MS165, MO132,
1SAM201902R1002
max. 2 pieces
0.035
HK1-20
MO165, MS132-T,
MS132-K, MS132-KT 0 2 max. 2 pieces HK1-02 1SAM201902R1003 2 0.035
SK1-11 MS116, MS132, 2 0 max. 2 pieces HK1-20L 1SAM201902R1004 2 0.035
MO132, MS132-T, with leading contacts
MS132-K, MS132-KT
MS116, MS132, 1 1 max. 2 pieces, terminal marking HK1-11A 1SAM201902R1011 2 0.035
MS165, MO132, (13/14, 21/22)
MO165, MS132-T, 1 1 max. 2 pieces, terminal marking HK1-11B 1SAM201902R1021 2 0.035
MS132-K, MS132-KT 0 2 (43/44, 31/32) HK1-20A 1SAM201902R1012 2 0.035
max. 2 pieces, terminal marking
1SAM201903R1001 Signaling contacts – mountable on the right
(13/14, 23/24)
MS116, MS132, 1 1 for tripped alarm, with manual reset SK1-11 1SAM201903R1001 2 0.035
SK1-11AR MS165, MO132, 2 0 for tripped alarm, with manual reset SK1-20 1SAM201903R1002 2 0.035
MO165, MS132-T, 0 2 for tripped alarm, with manual reset SK1-02 1SAM201903R1003 2 0.035
MS132-K, MS132-KT
MS116, MS132, 1 1 for tripped alarm SK1-11AR 1SAM201903R1004 2 0.036
MS165, MO132, 2 0 for tripped alarm SK1-20AR 1SAM201903R1005 2 0.036
MO165, MS132-T, 0 2 for tripped alarm SK1-02AR 1SAM201903R1006 2 0.036
MS132-K, MS132-KT
MS132, MS165, 1 1 for short-circuit alarm CK1-11 1SAM301901R1001 2 0.035
MS132-T, MS132-K, 2 0 0 2 for short-circuit alarm CK1-20 1SAM301901R1002 2 2 0.035
MS132-KT
CK1-02
for short-circuit alarm
1SAM301901R1003
0.035
1SBC101286F0014 Note : F or BEA connecting links with AF, AS and B mini and M mini contactors please refer to chapters 3, 4
and 5.
CK1-11
42.1 1.66" 1.77" 45 2.83" 72 3.54" 90

9 0.35" 5.5 0.22" 27.8 1.09"
42.3 1.67"
68.8 2.71"
HK1, SK1-AR SK1, CK1
Main dimensions mm, inches Main dimensions mm, inches
