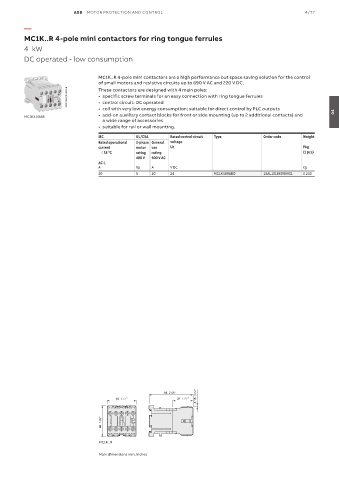

ABB MOTOR PROTECTION AND CONTROL 4/77

—
MC1K..R 4-pole mini contactors for ring tongue ferrules

4 kW
DC operated - low consumption

MC1K..R 4-pole mini contactors are a high performance but space saving solution for the control
of small motors and resistive circuits up to 690 V AC and 220 V DC.
2CDC211021V0019 These contactors are designed with 4 main poles:
• specific screw terminals for an easy connection with ring tongue ferrules
• control circuit: DC operated
• coil with very low energy consumption; suitable for direct control by PLC outputs
• add-on auxiliary contact blocks for front or side mounting (up to 2 additional contacts) and 04
MC1K400AR
a wide range of accessories
• suitable for rail or wall mounting.
IEC UL/CSA Rated control circuit Type Order code Weight
Rated operational 3-phase General voltage
current motor use Uc Pkg
θ ≤ 55 °C rating rating (1 pce)
480 V 600 V AC
AC-1
A hp A V DC kg
20 5 20 24 MC1K400ARD 1SAL101860R9901 0.250

1.15 0.04’’
68 2.68’’
45 1.77’’ 31 1.22’’

48 1.89’’

MC1K..R

Main dimensions mm, inches
