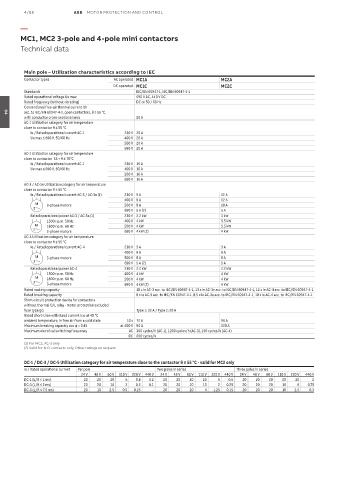

4/88 ABB MOTOR PROTECTION AND CONTROL

—
MC1, MC2 3-pole and 4-pole mini contactors

Technical data

Main pole – Utilization characteristics according to IEC
Contactor types AC operated MC1A MC2A
DC operated MC1C MC2C
Standards IEC/EN 60947-1, IEC/EN 60947-4-1
Rated operational voltage Ue max 690 V AC, 440 V DC
Rated frequency (without derating) DC or 50 / 60 Hz
Conventional free-air thermal current Ith
acc. to IEC/EN 60947-4-1, open contactors, θ ≤ 55 °C,
04
with conductor cross-sectional area 20 A
AC-1 Utilization category for air temperature
close to contactor θ ≤ 55 °C
Ie / Rated operational current AC-1 230 V 20 A
Ue max ≤ 690 V, 50/60 Hz 400 V 20 A
500 V 20 A
690 V 20 A
AC-1 Utilization category for air temperature
close to contactor 55 < θ ≤ 70°C
Ie / Rated operational current AC-1 230 V 16 A
Ue max ≤ 690 V, 50/60 Hz 400 V 16 A
500 V 16 A
690 V 16 A
AC-3 / AC-3e Utilization category for air temperature
close to contactor θ ≤ 55 °C
Ie / Rated operational current AC-3 / AC-3e (1) 230 V 9 A 12 A
400 V 9 A 12 A
M 3-phase motors 500 V 8 A 10 A
3 690 V 5 A (2) 5 A
Rated operational power AC-3 / AC-3e (1) 230 V 2.2 kW 3 kW
1500 r.p.m. 50 Hz 400 V 4 kW 5.5 kW
M 1800 r.p.m. 60 Hz 500 V 4 kW 5.5 kW
3
3-phase motors 690 V 4 kW (2) 4 kW
AC-4 Utilization category for air temperature
close to contactor θ ≤ 55 °C
Ie / Rated operational current AC-4 230 V 9 A 9 A
400 V 9 A 9 A
M 3-phase motors 500 V 8 A 8 A
3 690 V 5 A (2) 5 A
Rated operational power AC-4 230 V 2.2 kW 2.2 kW
1500 r.p.m. 50 Hz 400 V 4 kW 4 kW
M 1800 r.p.m. 60 Hz 500 V 4 kW 4 kW
3 3-phase motors 690 V 4 kW (2) 4 kW
Rated making capacity 10 x Ie AC-3 acc. to IEC/EN 60947-4-1, 13 x Ie AC-3e acc. to IEC/EN 60947-4-1, 12 x Ie AC-4 acc. to IEC/EN 60947-4-1
Rated breaking capacity 8 x Ie AC-3 acc. to IEC/EN 60947-4-1, 8.5 x Ie AC-3e acc. to IEC/EN 60947-4-1, 10 x Ie AC-4 acc. to IEC/EN 60947-4-1
Short-circuit protection device for contactors
without thermal O/L relay - motor protection excluded
fuse type gG Type 1: 32 A / Type 2: 20 A
Rated short-time withstand current Icw at 40 °C
ambient temperature, in free air from a cold state 10 s 72 A 96 A
Maximum breaking capacity cos φ = 0.45 at 400 V 90 A 120 A
Maximum electrical switching frequency AC 300 cycles/h (AC-1), 1200 cycles/h (AC-3), 150 cycles/h (AC-4)
DC 600 cycles/h
(1) For MC2, AC-3 only
(2) Valid for N.O. contacts only. Other ratings on request.

DC-1 / DC-3 / DC-5 Utilization category for air temperature close to the contactor θ ≤ 55 °C - valid for MC2 only
Ie / Rated operational current Per pole Two poles in series Three poles in series
24 V 48 V 60 V 110 V 220 V 440 V 24 V 48 V 60 V 110 V 220 V 440 V 24 V 48 V 60 V 110 V 220 V 440 V
DC-1 (L/R ≤ 1 ms) 20 20 20 6 0.8 0.2 20 20 20 20 6 0.5 20 20 20 20 20 2
DC-3 (L/R ≤ 2 ms) 20 20 10 2 0.3 0.1 20 20 20 10 2 0.25 20 20 20 16 6 0.75
DC-5 (L/R ≤ 7.5 ms) 20 10 2.5 0.5 0.25 - 20 20 20 4 1.25 0.15 20 20 20 10 2.5 0.3
