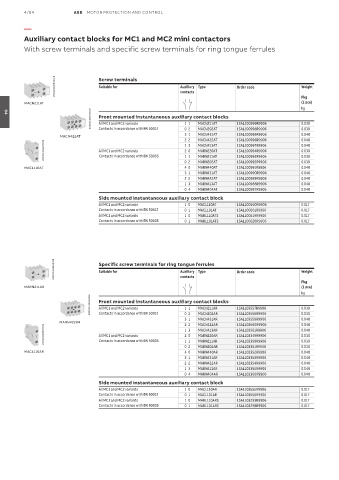

4/84 ABB MOTOR PROTECTION AND CONTROL

—

Auxiliary contact blocks for MC1 and MC2 mini contactors
With screw terminals and specific screw terminals for ring tongue ferrules

2CDC211030V0019 Screw terminals Auxiliary Type Order code Weight
Suitable for
contacts
(1 pce)
MACN211AT Pkg
kg
2CDC211031V0019 Front mounted instantaneous auxiliary contact blocks 1SAL100999R9906 0.030
04
All MC1 and MC2 variants
1 1
MACN211AT
Contacts in accordance with EN 50012
0 2
1SAL100995R9906
0.040
3 1 MACN202AT 1SAL100998R9906 0.030
MACN431AT
MACN422AT 2 2 MACN422AT 1SAL100996R9906 0.040
2CDC211034V0019 All MC1 and MC2 variants 1 3 MACN413AT 1SAL100997R9906 0.040
2 0
0.030
MARN220AT
1SAL100994R9906
Contacts in accordance with EN 50005
1 1
0 2 MARN211AT 1SAL100993R9906 0.030
0.030
MARN202AT
1SAL100992R9906
MACL110AT 4 0 MARN440AT 1SAL100991R9906 0.040
3 1 MARN431AT 1SAL100990R9906 0.040
2 2 MARN422AT 1SAL100989R9906 0.040
1 3 MARN413AT 1SAL100988R9906 0.040
0 4 MARN404AT 1SAL100987R9906 0.040
Side mounted instantaneous auxiliary contact block
All MC1 and MC2 variants 1 0 MACL110AT 1SAL100560R9906 0.017
Contacts in accordance with EN 50012 0 1 MACL101AT 1SAL100561R9906 0.017
All MC1 and MC2 variants 1 0 MARL110ATS 1SAL100519R9906 0.017
Contacts in accordance with EN 50005 0 1 MARL101ATS 1SAL100520R9906 0.017
2CDC211032V0019 Specific screw terminals for ring tongue ferrules Order code Weight
Suitable for
Auxiliary Type
contacts
Pkg
MARN211AR (1 pce)
kg
2CDC211033V0019 Front mounted instantaneous auxiliary contact blocks 1SAL103557R9906 0.030
All MC1 and MC2 variants
1 1
MACN211AR
Contacts in accordance with EN 50012
0 2
MACN431AR
3 1 MACN202AR 1SAL103558R9906 0.030
1SAL103559R9906
0.040
MARN422AR 2 2 MACN422AR 1SAL103560R9906 0.040
2CDC211035V0019 All MC1 and MC2 variants 1 3 MACN413AR 1SAL103561R9906 0.040
1SAL103349R9906
0.030
MARN220AR
2 0
Contacts in accordance with EN 50005
1 1
1SAL103351R9906
0.030
MARN202AR
0 2 MARN211AR 1SAL103350R9906 0.030
MACL110AR 4 0 MARN440AR 1SAL103352R9906 0.040
3 1 MARN431AR 1SAL103353R9906 0.040
2 2 MARN422AR 1SAL103354R9906 0.040
1 3 MARN413AR 1SAL103355R9906 0.040
0 4 MARN404AR 1SAL103300R9906 0.040
Side mounted instantaneous auxiliary contact block
All MC1 and MC2 variants 1 0 MACL110AR 1SAL103555R9906 0.017
Contacts in accordance with EN 50012 0 1 MACL101AR 1SAL103556R9906 0.017
All MC1 and MC2 variants 1 0 MARL110ARS 1SAL103299R9906 0.017
Contacts in accordance with EN 50005 0 1 MARL101ARS 1SAL103298R9906 0.017
