ABB MOTOR PROTECTION AND CONTROL 5/25

—

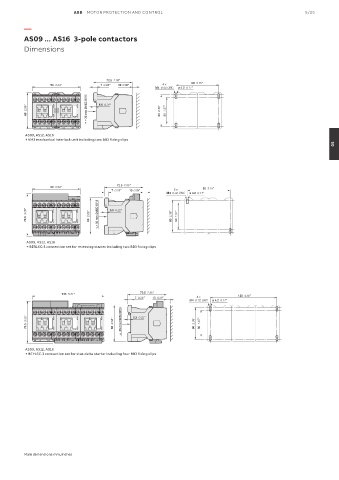

AS09 ... AS16 3-pole contactors
Dimensions

72.5 2.85"
90 3.54" 7 0.28" 10 0.39" 4 x 80 3.15"
M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 60 2.36" 50 1.97"

AS09, AS12, AS16
+ VM3 mechanical interlock unit including two BB3 fixing clips
05

72.5 2.85"
90 3.54" 80 3.15"
7 0.28" 10 0.39" 2 x
M4 8-32 UNC ø 4.2 0.17"

78.5 3.09" 68 2.68" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 50 1.97"

AS09, AS12, AS16
+ BER16C-3 connection set for reversing starter including two BB3 fixing clips

72.5 2.85"
135 5.31" 125 4.92"
7 0.28" 10 0.39" 4 x
M4 8-32 UNC ø 4.2 0.17"
78.5 3.09" 68 2.68" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 50 1.97"

AS09, AS12, AS16
+ BEY16C-3 connection set for star-delta starter including four BB3 fixing clips

Main dimensions mm, inches
