5/20 ABB MOTOR PROTECTION AND CONTROL

—
AS09 ... AS16 and ASL09 ... ASL16 3-pole contactors

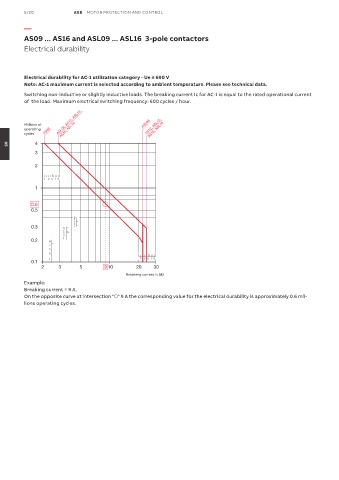

Electrical durability

Electrical durability for AC-1 utilization category - Ue ≤ 690 V
Note: AC-1 maximum current is selected according to ambient temperature. Please see technical data.
Switching non-inductive or slightly inductive loads. The breaking current Ic for AC-1 is equal to the rated operational current
of the load. Maximum electrical switching frequency: 600 cycles / hour.
ASL09, AS12, ASL12,

Millions of ASL09 AS12, ASL12,
operating AS09 AS16, ASL16 AS16, ASL16
cycles
4
05
3

2

13 57 9
1

0.6
0.5
9
7
5
0.3 9 3 1
7
5
3
0.2 9 1
7
5
3
1 13 57 9
0.1
2 3 5 9 10 20 30
Breaking current Ic (A)
Example:
Breaking current = 9 A.
On the opposite curve at intersection " " 9 A the corresponding value for the electrical durability is approximately 0.6 mil-
lions operating cycles.
