6/34 ABB MOTOR PROTECTION AND CONTROL

—

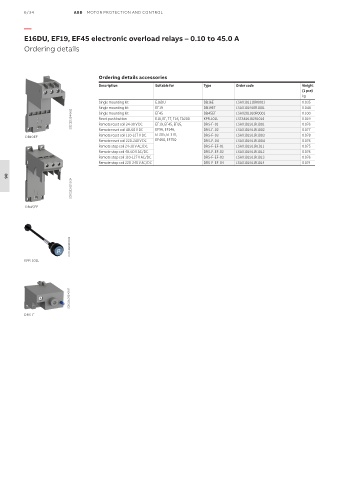

E16DU, EF19, EF45 electronic overload relays – 0.10 to 45.0 A

Ordering details

Ordering details accessories
Description Suitable for Type Order code Weight
(1 pce)
kg
Single mounting kit E16DU DB16E 1SAX101110R0001 0.035
Single mounting kit EF19 DB19EF 1SAX101910R1001 0.046
2CDC231024V0013 Reset push button E16, EF, TF, T16, TA200 KPR-101L 1SFA616162R1014 0.019
EF45
DB45EF
Single mounting kit
0.100
1SAX201910R0001
EF19, EF45, EF65,
0.076
DRS-F-01
1SAX101911R1001
Remote reset coil 24-30 V DC
EF205, EF370,
0.078
1SAX101911R1003
DRS-F-03
Remote reset coil 110-127 V DC
DB19EF Remote reset coil 48-60 V DC EF96, EF146, DRS-F-02 1SAX101911R1002 0.077
Remote reset coil 220-240 V DC EF460, EF750 DRS-F-04 1SAX101911R1004 0.076
Remote stop coil 24-30 V AC/DC DRS-F-EF-01 1SAX101911R1011 0.075
Remote stop coil 48-60 V AC/DC DRS-F-EF-02 1SAX101911R1012 0.076
Remote stop coil 110-127 V AC/DC DRS-F-EF-03 1SAX101911R1013 0.076
Remote stop coil 220-240 V AC/DC DRS-F-EF-04 1SAX101911R1014 0.074
2CDC231002V0014
06
DB45EF

1SFC151224F0002

KPR-101L

2CDC211002V0017

DRS-F
