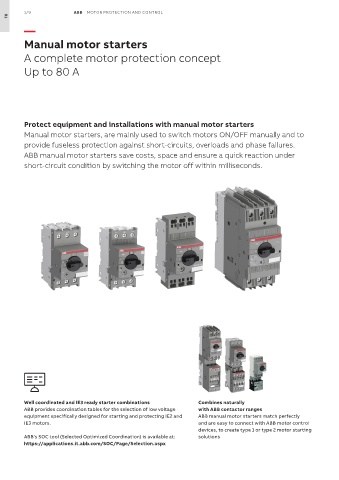

1/9 ABB MOTOR PROTECTION AND CONTROL
01
—

Manual motor starters

A complete motor protection concept

Up to 80 A

Protect equipment and installations with manual motor starters
Manual motor starters, are mainly used to switch motors ON/OFF manually and to

provide fuseless protection against short-circuits, overloads and phase failures.
ABB manual motor starters save costs, space and ensure a quick reaction under
short-circuit condition by switching the motor off within milliseconds.

Well coordinated and IE3 ready starter combinations Combines naturally
ABB provides coordination tables for the selection of low voltage with ABB contactor ranges
equipment specifically designed for starting and protecting IE2 and ABB manual motor starters match perfectly
IE3 motors. and are easy to connect with ABB motor control
devices, to create type 1 or type 2 motor starting
ABB’s SOC tool (Selected Optimized Coordination) is available at: solutions
https://applications.it.abb.com/SOC/Page/Selection.aspx
