ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/89

—

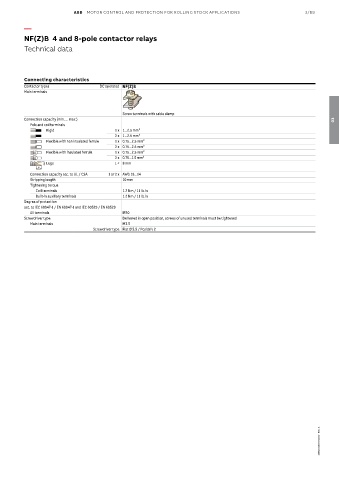

NF(Z)B 4 and 8-pole contactor relays

Technical data

Connecting characteristics
Contactor types DC operated NF(Z)B
Main terminals

Screw terminals with cable clamp
Connection capacity (min. ... max.) 03
Pole and coil terminals
Rigid 1 x 1...2.5 mm²
2 x 1...2.5 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...1.5 mm²
LLugs L < 8 mm
6
Connection capacity acc. to UL / CSA 1 or 2 x AWG 18...14
Stripping length 10 mm
Tightening torque
Coil terminals 1.2 Nm / 11 Ib.in
Built-in auxiliary terminals 1.2 Nm / 11 Ib.in
Degree of protection
acc. to IEC 60947-1 / EN 60947-1 and IEC 60529 / EN 60529
All terminals IP20
Screwdriver type Delivered in open position, screws of unused terminals must be tightened
Main terminals M3.5
Screwdriver type Flat Ø 5.5 / Pozidriv 2
