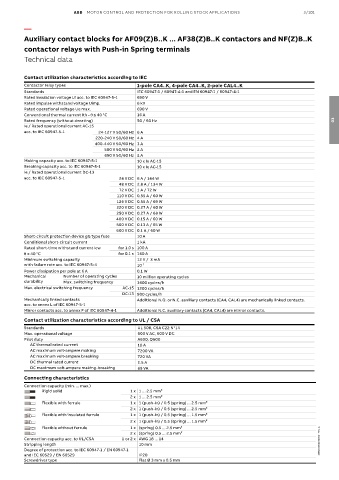

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/101

—

Auxiliary contact blocks for AF09(Z)B..K ... AF38(Z)B..K contactors and NF(Z)B..K
contactor relays with Push-in Spring terminals
Technical data

Contact utilization characteristics according to IEC
Contactor relay types 1-pole CA4..K, 4-pole CA4..K, 2-pole CAL4..K
Standards IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1
Rated insulation voltage Ui acc. to IEC 60947-5-1 690 V
Rated impulse withstand voltage Uimp. 6 kV
Rated operational voltage Ue max. 690 V
Conventional thermal current Ith - θ ≤ 40 °C 16 A
Rated frequency (without derating) 50 / 60 Hz 03
Ie / Rated operational current AC-15
acc. to IEC 60947-5-1 24-127 V 50/60 Hz 6 A
220-240 V 50/60 Hz 4 A
400-440 V 50/60 Hz 3 A
500 V 50/60 Hz 2 A
690 V 50/60 Hz 2 A
Making capacity acc. to IEC 60947-5-1 10 x Ie AC-15
Breaking capacity acc. to IEC 60947-5-1 10 x Ie AC-15
Ie / Rated operational current DC-13
acc. to IEC 60947-5-1 24 V DC 6 A / 144 W
48 V DC 2.8 A / 134 W
72 V DC 1 A / 72 W
110 V DC 0.55 A / 60 W
125 V DC 0.55 A / 69 W
220 V DC 0.27 A / 60 W
250 V DC 0.27 A / 68 W
400 V DC 0.15 A / 60 W
500 V DC 0.13 A / 65 W
600 V DC 0.1 A / 60 W
Short-circuit protection device gG type fuse 10 A
Conditional short-circuit current 1 kA
Rated short-time withstand current Icw for 1.0 s 100 A
θ = 40 °C for 0.1 s 140 A
Minimum switching capacity 12 V / 3 mA
with failure rate acc. to IEC 60947-5-4 10 -7
Power dissipation per pole at 6 A 0.1 W
Mechanical Number of operating cycles 10 million operating cycles
durability Max. switching frequency 3600 cycles/h
Max. electrical switching frequency AC-15 1200 cycles/h
DC-13 900 cycles/h
Mechanically linked contacts Additional N.O. or N.C. auxiliary contacts (CA4, CAL4) are mechanically linked contacts.
acc. to annex L of IEC 60947-5-1
Mirror contacts acc. to annex F of IEC 60947-4-1 Additional N.C. auxiliary contacts (CA4, CAL4) are mirror contacts.
Contact utilization characteristics according to UL / CSA
Standards UL 508, CSA C22 N°14
Max. operational voltage 600 V AC, 600 V DC
Pilot duty A600, Q600
AC thermal rated current 10 A
AC maximum volt-ampere making 7200 VA
AC maximum volt-ampere breaking 720 VA
DC thermal rated current 2.5 A
DC maximum volt-ampere making-breaking 69 VA
Connecting characteristics
Connection capacity (min. ... max.)
Rigid solid 1 x 1 ... 2.5 mm²
2 x 1 ... 2.5 mm²
Flexible with ferrule 1 x 1 (push-in) / 0.5 (spring) ... 2.5 mm²
2 x 1 (push-in) / 0.5 (spring) ... 2.5 mm²
Flexible with insulated ferrule 1 x 1 (push-in) / 0.5 (spring) ... 1.5 mm²
2 x 1 (push-in) / 0.5 (spring) ... 1.5 mm²
Flexible without ferrule 1 x (spring) 0.5 ... 2.5 mm²
2 x (spring) 0.5 ... 2.5 mm²
Connection capacity acc. to UL/CSA 1 or 2 x AWG 18 ... 14
Stripping length 10 mm 1SBC100621S0201 - Rev. A
Degree of protection acc. to IEC 60947-1 / EN 60947-1
and IEC 60529 / EN 60529 IP20
Screwdriver type Flat Ø 3 mm x 0.5 mm
