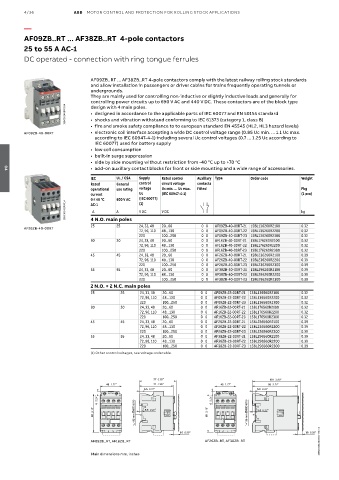

4/36 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
AF09ZB..RT ... AF38ZB..RT 4-pole contactors

25 to 55 A AC-1
DC operated - connection with ring tongue ferrules

AF09ZB..RT ... AF38ZB..RT 4-pole contactors comply with the latest railway rolling stock standards
and allow installation in passengers or driver cabins for trains frequently operating tunnels or
undergrounds.
They are mainly used for controlling non-inductive or slightly inductive loads and generally for
controlling power circuits up to 690 V AC and 440 V DC. These contactors are of the block type
1SBC101405F0014 • designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
design with 4 main poles.
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
• fire and smoke safety compliance to to european standard EN 45545 (HL2, HL3 hazard levels)
AF09ZB-40-00RT • electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max.
according to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to
IEC 60077) used for battery supply
• low coil consumption
• built-in surge suppression
• side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
04
IEC UL / CSA Supply Rated control Auxiliary Type Order code Weight
Rated General control circuit voltage contacts
operational use rating voltage Uc min. … Uc max. fitted Pkg
current Uc (IEC 60947-4-1) (1 pce)
θ ≤ 40 °C 600 V AC (IEC 60077)
1SBC101411F0014 A A V DC V DC kg
(1)
AC-1
4 N.O. main poles
25 25 24, 33, 48 20...60 0 0 AF09ZB-40-00RT-21 1SBL136260R2100 0.32
AF26ZB-40-00RT
72, 96, 110 48...130 0 0 AF09ZB-40-00RT-22 1SBL136260R2200 0.32
220 100...250 0 0 AF09ZB-40-00RT-23 1SBL136260R2300 0.32
30 30 24, 33, 48 20...60 0 0 AF16ZB-40-00RT-21 1SBL176260R2100 0.32
72, 96, 110 48...130 0 0 AF16ZB-40-00RT-22 1SBL176260R2200 0.32
220 100...250 0 0 AF16ZB-40-00RT-23 1SBL176260R2300 0.32
45 45 24, 33, 48 20...60 0 0 AF26ZB-40-00RT-21 1SBL236260R2100 0.39
72, 96, 110 48...130 0 0 AF26ZB-40-00RT-22 1SBL236260R2200 0.39
220 100...250 0 0 AF26ZB-40-00RT-23 1SBL236260R2300 0.39
55 55 24, 33, 48 20...60 0 0 AF38ZB-40-00RT-21 1SBL296260R2100 0.39
72, 96, 110 48...130 0 0 AF38ZB-40-00RT-22 1SBL296260R2200 0.39
220 100...250 0 0 AF38ZB-40-00RT-23 1SBL296260R2300 0.39
2 N.O. + 2 N.C. main poles
25 25 24, 33, 48 20...60 0 0 AF09ZB-22-00RT-21 1SBL136560R2100 0.32
72, 96, 110 48...130 0 0 AF09ZB-22-00RT-22 1SBL136560R2200 0.32
220 100...250 0 0 AF09ZB-22-00RT-23 1SBL136560R2300 0.32
30 30 24, 33, 48 20...60 0 0 AF16ZB-22-00RT-21 1SBL176560R2100 0.32
72, 96, 110 48...130 0 0 AF16ZB-22-00RT-22 1SBL176560R2200 0.32
220 100...250 0 0 AF16ZB-22-00RT-23 1SBL176560R2300 0.32
45 45 24, 33, 48 20...60 0 0 AF26ZB-22-00RT-21 1SBL236560R2100 0.39
72, 96, 110 48...130 0 0 AF26ZB-22-00RT-22 1SBL236560R2200 0.39
220 100...250 0 0 AF26ZB-22-00RT-23 1SBL236560R2300 0.39
55 55 24, 33, 48 20...60 0 0 AF38ZB-22-00RT-21 1SBL296560R2100 0.39
72, 96, 110 48...130 0 0 AF38ZB-22-00RT-22 1SBL296560R2200 0.39
220 100...250 0 0 AF38ZB-22-00RT-23 1SBL296560R2300 0.39
(1) Other control voltages, see voltage code table.

77 3.03" 101 3.98"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 95 3.74" 35 1.38"
ø 4.2 0.17" 2 x
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 80 3.15" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"

5 0.20" 5 0.20"
10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09ZB..RT, AF16ZB..RT AF26ZB..RT, AF38ZB..RT 1SBC101812S0201 - Rev. A

Main dimensions mm, inches
