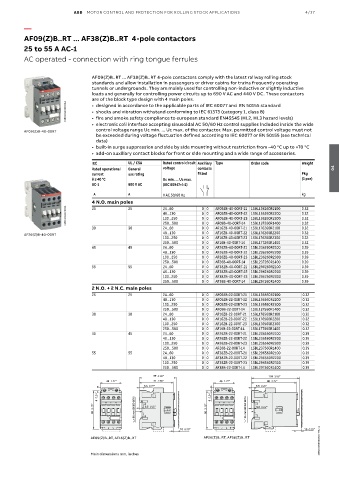

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 4/37

—
AF09(Z)B..RT ... AF38(Z)B..RT 4-pole contactors

25 to 55 A AC-1
AC operated - connection with ring tongue ferrules

AF09(Z)B..RT ... AF38(Z)B..RT 4-pole contactors comply with the latest railway rolling stock
standards and allow installation in passengers or driver cabins for trains frequently operating
tunnels or undergrounds. They are mainly used for controlling non-inductive or slightly inductive
loads and generally for controlling power circuits up to 690 V AC and 440 V DC. These contactors
are of the block type design with 4 main poles.
1SBC101405F0014 • designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
• fire and smoke safety compliance to european standard EN45545 (HL2, HL3 hazard levels)
• electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide
control voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage must not
AF09(Z)B-40-00RT
be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical
data)
• built-in surge suppression and side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General voltage contacts 04
current use rating fitted Pkg
θ ≤ 40 °C Uc min. … Uc max. (1 pce)
AC-1 600 V AC (IEC 60947-4-1)
A A V AC 50/60 Hz kg
4 N.O. main poles 24...60 0 0 AF09ZB-40-00RT-21 1SBL136260R2100 0.32
1SBC101411F0014 48...130 0 0 AF09ZB-40-00RT-22 1SBL136260R2200 0.32
25
25
0 0
100...250
0.32
AF09ZB-40-00RT-23 1SBL136260R2300
24...60
0.32
30 30 250…500 0 0 AF09B-40-00RT-14 1SBL137260R1400 0.32
0 0
AF16ZB-40-00RT-21 1SBL176260R2100
48...130 0 0 AF16ZB-40-00RT-22 1SBL176260R2200 0.32
AF26(Z)B-40-00RT
100...250 0 0 AF16ZB-40-00RT-23 1SBL176260R2300 0.32
250…500 0 0 AF16B-40-00RT-14 1SBL177260R1400 0.32
45 45 24...60 0 0 AF26ZB-40-00RT-21 1SBL236260R2100 0.39
48...130 0 0 AF26ZB-40-00RT-22 1SBL236260R2200 0.39
100...250 0 0 AF26ZB-40-00RT-23 1SBL236260R2300 0.39
250…500 0 0 AF26B-40-00RT-14 1SBL237260R1400 0.39
55 55 24...60 0 0 AF38ZB-40-00RT-21 1SBL296260R2100 0.39
48...130 0 0 AF38ZB-40-00RT-22 1SBL296260R2200 0.39
100...250 0 0 AF38ZB-40-00RT-23 1SBL296260R2300 0.39
250…500 0 0 AF38B-40-00RT-14 1SBL297260R1400 0.39
2 N.O. + 2 N.C. main poles
25 25 24...60 0 0 AF09ZB-22-00RT-21 1SBL136560R2100 0.32
48...130 0 0 AF09ZB-22-00RT-22 1SBL136560R2200 0.32
100...250 0 0 AF09ZB-22-00RT-23 1SBL136560R2300 0.32
250…500 0 0 AF09B-22-00RT-14 1SBL137560R1400 0.32
30 30 24...60 0 0 AF16ZB-22-00RT-21 1SBL176560R2100 0.32
48...130 0 0 AF16ZB-22-00RT-22 1SBL176560R2200 0.32
100...250 0 0 AF16ZB-22-00RT-23 1SBL176560R2300 0.32
250…500 0 0 AF16B-22-00RT-14 1SBL177560R1400 0.32
45 45 24...60 0 0 AF26ZB-22-00RT-21 1SBL236560R2100 0.39
48...130 0 0 AF26ZB-22-00RT-22 1SBL236560R2200 0.39
100...250 0 0 AF26ZB-22-00RT-23 1SBL236560R2300 0.39
250…500 0 0 AF26B-22-00RT-14 1SBL237560R1400 0,39
55 55 24...60 0 0 AF38ZB-22-00RT-21 1SBL296560R2100 0.39
48...130 0 0 AF38ZB-22-00RT-22 1SBL296560R2200 0.39
100...250 0 0 AF38ZB-22-00RT-23 1SBL296560R2300 0.39
250…500 0 0 AF38B-22-00RT-14 1SBL297560R1400 0.39
77 3.03" 101 3.98"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 95 3.74" 35 1.38" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20"
1SBC100099S0201 - Rev. A
10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09(Z)B..RT, AF16(Z)B..RT AF26(Z)B..RT, AF38(Z)B..RT
Main dimensions mm, inches
