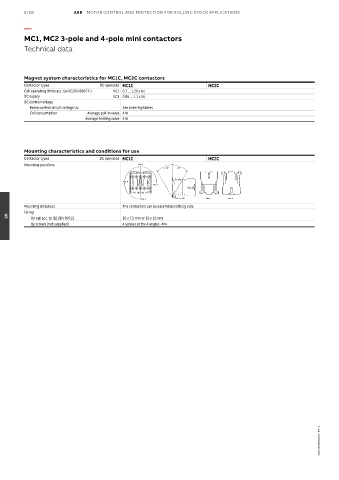

5/28 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
MC1, MC2 3-pole and 4-pole mini contactors

Technical data

Magnet system characteristics for MC1C, MC2C contactors
Contactor types DC operated MC1C MC2C
Coil operating limits acc. to IEC/EN 60077-1 VC1 0.7 ... 1.25 x Uc
DC supply VC3 0.85 ... 1.1 x Uc
DC control voltage
Rated control circuit voltage Uc See ordering tables
Coil consumption Average pull-in value 4 W
Average holding value 4 W

Mounting characteristics and conditions for use
Contactor types DC operated MC1C MC2C
Mounting positions Pos. 2
+ 30° - 30°

Pos. 4
Pos. 3
Pos. 1 Pos. 1 ± 30° Pos. 5 Pos. 6
Mounting distances The contactors can be assembled side by side
Fixing
On rail acc. to IEC/EN 60715 35 x 7.5 mm or 35 x 15 mm
05
By screws (not supplied) 4 screws at the 4 angles - M4
