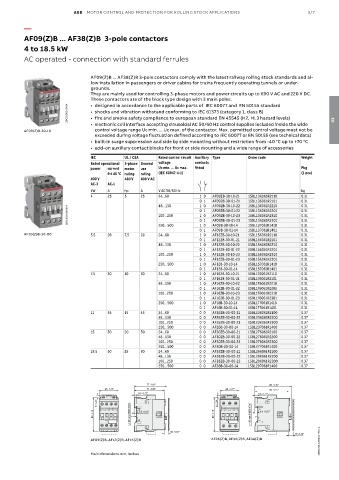

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/7

—
AF09(Z)B ... AF38(Z)B 3-pole contactors

4 to 18.5 kW
AC operated - connection with standard ferrules

AF09(Z)B ... AF38(Z)B 3-pole contactors comply with the latest railway rolling stock standards and al-
low installation in passengers or driver cabins for trains frequently operating tunnels or under-
grounds.
They are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC.
These contactors are of the block type design with 3 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
1SBC101011V0014 • shocks and vibration withstand conforming to IEC 61373 (category 1, class B) 03
• fire and smoke safety compliance to european standard EN 45545 (H2, HL3 hazard levels)

control voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage must not be
AF09(Z)B-30-10 • electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide
exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical data)
• built-in surge suppression and side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (IEC 60947-4-1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V AC 50/60 Hz kg
4 25 5 25 24...60 1 0 AF09ZB-30-10-21 1SBL136061R2110 0.31
0 1 AF09ZB-30-01-21 1SBL136061R2101 0.31
1SBL136061R2210
0.31
1 0
AF09ZB-30-10-22
48...130
1SBC101011V0014 100...250 0 1 AF09ZB-30-01-22 1SBL136061R2201 0.31
1 0
AF09ZB-30-10-23
0.31
1SBL136061R2310
0 1
0.31
AF09ZB-30-01-23
1SBL136061R2301
1 0
250…500
0 1 AF09B-30-10-14 1SBL137061R1410 0.31
AF09B-30-01-14
1SBL137061R1401
0.31
AF26(Z)B-30-00 5.5 28 7,5 28 24...60 1 0 AF12ZB-30-10-21 1SBL156061R2110 0.31
0 1 AF12ZB-30-01-21 1SBL156061R2101 0.31
48...130 1 0 AF12ZB-30-10-22 1SBL156061R2210 0.31
0 1 AF12ZB-30-01-22 1SBL156061R2201 0.31
100...250 1 0 AF12ZB-30-10-23 1SBL156061R2310 0.31
0 1 AF12ZB-30-01-23 1SBL156061R2301 0.31
250…500 1 0 AF12B-30-10-14 1SBL157061R1410 0.31
0 1 AF12B-30-01-14 1SBL157061R1401 0.31
7.5 30 10 30 24...60 1 0 AF16ZB-30-10-21 1SBL176061R2110 0.31
0 1 AF16ZB-30-01-21 1SBL176061R2101 0.31
48...130 1 0 AF16ZB-30-10-22 1SBL176061R2210 0.31
0 1 AF16ZB-30-01-22 1SBL176061R2201 0.31
100...250 1 0 AF16ZB-30-10-23 1SBL176061R2310 0.31
0 1 AF16ZB-30-01-23 1SBL176061R2301 0.31
250…500 1 0 AF16B-30-10-14 1SBL177061R1410 0.31
0 1 AF16B-30-01-14 1SBL177061R1401 0.31
11 45 15 45 24...60 0 0 AF26ZB-30-00-21 1SBL236061R2100 0.37
48...130 0 0 AF26ZB-30-00-22 1SBL236061R2200 0.37
100...250 0 0 AF26ZB-30-00-23 1SBL236061R2300 0.37
250…500 0 0 AF26B-30-00-14 1SBL237061R1400 0.37
15 50 20 50 24...60 0 0 AF30ZB-30-00-21 1SBL276061R2100 0.37
48...130 0 0 AF30ZB-30-00-22 1SBL276061R2200 0.37
100...250 0 0 AF30ZB-30-00-23 1SBL276061R2300 0.37
250…500 0 0 AF30B-30-00-14 1SBL277061R1400 0.37
18.5 50 25 50 24...60 0 0 AF38ZB-30-00-21 1SBL296061R2100 0.37
48...130 0 0 AF38ZB-30-00-22 1SBL296061R2200 0.37
100...250 0 0 AF38ZB-30-00-23 1SBL296061R2300 0.37
250…500 0 0 AF38B-30-00-14 1SBL297061R1400 0.37
77 3.03" 86 3.39"
45 1.77" 71 2.80" 35 1.38" 2 x 45 1.77" 80 3.15" 35 1.38" 2 x
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 80 3.15" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20"
1SBC100114S0201 - Rev. A
10 0.39"
5 0.20" 10 0.39" 5 0.20"
AF09(Z)B, AF12(Z)B, AF16(Z)B AF26(Z)B, AF30(Z)B, AF38(Z)B
Main dimensions mm, inches
