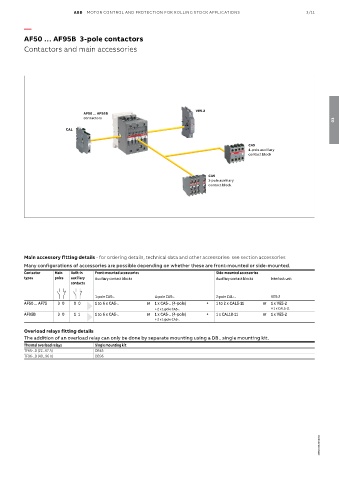

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/11

—

AF50 … AF95B 3-pole contactors
Contactors and main accessories

VE5-2
AF50 ... AF95B
contactors
03
CAL

CA5
4-pole auxiliary
contact block

CA5
1-pole auxiliary
contact block

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Auxiliary contact blocks Interlock unit
contacts
1-pole CA5-.. 4-pole CA5-.. 2-pole CAL-.. VE5-2
AF50 ... AF75 3 0 0 0 1 to 6 x CA5-.. or 1 x CA5-.. (4-pole) + 1 to 2 x CAL5-11 or 1 x VE5-2
+ 2 x 1-pole CA5-.. + 1 x CAL5-11
AF95B 3 0 1 1 1 to 6 x CA5-.. or 1 x CA5-.. (4-pole) + 1 x CAL18-11 or 1 x VE5-2
+ 2 x 1-pole CA5-..
Overload relays fitting details
The addition of an overload relay can only be done by separate mounting using a DB.. single mounting kit.
Thermal overload relays Single mounting kit
TF65-..B (22...67 A) DB65
TF96-..B (40...96 A) DB96

1SBC100130S0201
