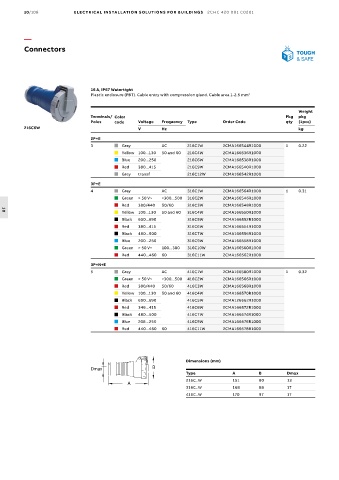

Page 1030 - Din prodcuts 2020

10/108 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Connectors

16 A, IP67 Watertight
Plastic enclosure (PBT). Cable entry with compression gland. Cable area 1-2.5 mm 2

Weight
Terminals/ Color Pkg pkg
Poles code Voltage Frequency Type Order Code qty (1pce)
216C6W V Hz kg
2P+E
3  Grey AC 216C1W 2CMA166544R1000 1 0.22

 Yellow 100...130
 50 and 60 216C4W 2CMA166536R1000

  Blue 200...250 216C6W 2CMA166538R1000
 Red 380...415 216C9W 2CMA166540R1000

 Grey
 transf 216C12W 2CMA166542R1000
3P+E
 Grey
4  AC 316C1W 2CMA166564R1000 1 0.31

  Green > 50 V~ >300...500 316C2W 2CMA166546R1000
 Red
 380/440 50/60 316C3W 2CMA166548R1000
 Yellow 100...130
 50 and 60 316C4W 2CMA166550R1000
10
  Black 600...690 316C5W 2CMA166552R1000

 Red
 380...415 316C6W 2CMA166554R1000
  Black 480...500 316C7W 2CMA166556R1000

  Blue 200...250 316C9W 2CMA166558R1000
  Green > 50 V~ 100...300 316C10W 2CMA166560R1000

 Red
 440...460 60 316C11W 2CMA166562R1000
3P+N+E
5  Grey AC 416C1W 2CMA166580R1000 1 0.32


  Green > 50 V~ >300...500 416C2W 2CMA166566R1000
 Red 380/440 50/60 416C3W 2CMA166568R1000

 Yellow 100...130
 50 and 60 416C4W 2CMA166570R1000
  Black 600...690 416C5W 2CMA126662R1000


 Red 346...415 416C6W 2CMA166572R1000
  Black 480...500 416C7W 2CMA166574R1000

  Blue 208...250 416C9W 2CMA166576R1000
 Red 440...460 60 416C11W 2CMA166578R1000

Dimensions (mm)
Dmax B
Type A B Dmax
216C..W 151 80 13
A
316C..W 168 88 17
416C..W 170 97 17
