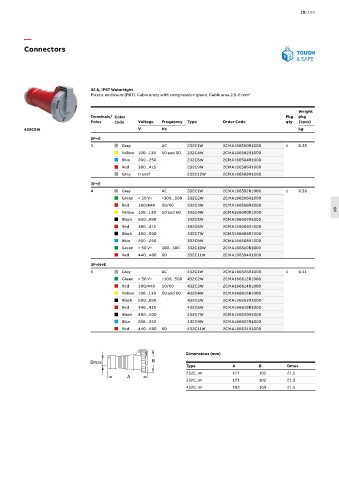

Connectors

32 A, IP67 Watertight
Plastic enclosure (PBT). Cable entry with compression gland. Cable area 2.5-6 mm 2

Weight
Terminals/ Color Pkg pkg
Poles code Voltage Frequency Type Order Code qty (1pce)
432C6W V Hz kg
2P+E
3  Grey AC 232C1W 2CMA166590R1000 1 0.35


 Yellow 100...130 50 and 60 232C4W 2CMA166582R1000

  Blue 200...250 232C6W 2CMA166584R1000
 Red
 380...415 232C9W 2CMA166586R1000
 Grey transf 232C12W 2CMA166588R1000

3P+E

4  Grey AC 332C1W 2CMA166592R1000 1 0.38

  Green > 50 V~ >300...500 332C2W 2CMA166596R1000
 Red
 380/440 50/60 332C3W 2CMA166598R1000
10
 50 and 60 332C4W 2CMA166600R1000
 Yellow 100...130
  Black 600...690 332C5W 2CMA166602R1000

 Red 380...415 332C6W 2CMA166604R1000

  Black 480...500 332C7W 2CMA166606R1000

  Blue 200...250 332C9W 2CMA166608R1000

  Green > 50 V~ 100...300 332C10W 2CMA166610R1000


 Red 440...460 60 332C11W 2CMA166594R1000
3P+N+E
5  Grey AC 432C1W 2CMA166526R1000 1 0.41

  Green > 50 V~ >300...500 432C2W 2CMA166612R1000

 Red 380/440 50/60 432C3W 2CMA166614R1000


 Yellow 100...130 50 and 60 432C4W 2CMA166616R1000
  Black 600...690 432C5W 2CMA126663R1000


 Red 346...415 432C6W 2CMA166618R1000
  Black 480...500 432C7W 2CMA166620R1000

  Blue 208...250 432C9W 2CMA166622R1000
 440...460 60 432C11W 2CMA166624R1000
 Red
Dimensions (mm)
Dmax B
Type A B Dmax
232C..W 177 102 21.5
A
332C..W 177 102 21.5
432C..W 182 109 21.5
