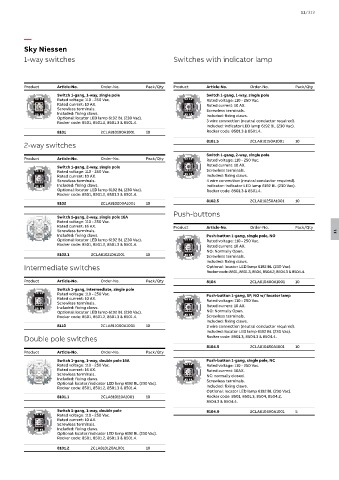

Page 1419 - Din prodcuts 2020

11/313

—
Sky Niessen
1-way switches Switches with indicator lamp

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty
Switch 1-gang, 1-way, single pole Switch 1-gang, 1-way, single pole
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 10 AX. Rated current: 10 AX.
Screwless terminals. Screwless terminals.
Included: fixing claws. Included: fixing claws.
Optional: locator LED lamp 6192 BL (230 Vac).
Rocker code: 8501, 8501.2, 8501.3 & 8501.4. 3 wire connection (neutral conductor required).
Included: indicator LED lamp 6192 BL (230 Vac).
8101 2CLA810100A1001 10 Rocker code: 8501.3 & 8501.4.
8101.5 2CLA810150A1001 10
2-way switches
Switch 1-gang, 2-way, single pole
Product Article-No. Order-No. Pack/Qty Rated voltage: 110 - 250 Vac.
Switch 1-gang, 2-way, single pole Rated current: 10 AX.
Rated voltage: 110 - 250 Vac. Screwless terminals.
Rated current: 10 AX. Included: fixing claws.
Screwless terminals. 4 wire connection (neutral conductor required).
Included: fixing claws. Indicator: indicator LED lamp 6192 BL (230 Vac).
Optional: locator LED lamp 6192 BL (230 Vac). Rocker code: 8501.3 & 8501.4.
Rocker code: 8501, 8501.2, 8501.3 & 8501.4.
8102.5 2CLA810250A1001 10
8102 2CLA810200A1001 10
Push-buttons
Switch 1-gang, 2-way, single pole 16A
Rated voltage: 110 - 250 Vac.
Rated current: 16 AX. Product Article-No. Order-No. Pack/Qty
Screwless terminals. 11
Included: fixing claws. Push-button 1-gang, single pole, NO
Optional: locator LED lamp 6192 BL (230 Vac). Rated voltage: 110 - 250 Vac.
Rocker code: 8501, 8501.2, 8501.3 & 8501.4. Rated current: 10 AX.
NO: Normally Open.
8102.1 2CLA810210A1001 10 Screwless terminals.
Included: fixing claws.
Intermediate switches Optional: locator LED lamp 6192 BL (230 Vac).
Rocker code: 8501, 8501.3, 8504, 8504.2, 8504.3 & 8504.4.
Product Article-No. Order-No. Pack/Qty 8104 2CLA810400A1001 10
Switch 1-gang, intermediate, single pole
Rated voltage: 110 - 250 Vac. Push-button 1-gang, SP, NO w/ locator lamp
Rated current: 10 AX. Rated voltage: 110 - 250 Vac.
Screwless terminals.
Included: fixing claws. Rated current: 10 AX.
Optional: locator LED lamp 6192 BL (230 Vac). NO: Normally Open.
Rocker code: 8501, 8501.2, 8501.3 & 8501.4. Screwless terminals.
Included: fixing claws.
8110 2CLA811000A1001 10 3 wire connection (neutral conductor required).
Included: locator LED lamp 6192 BL (230 Vac).
Double pole switches Rocker code: 8501.3, 8504.3 & 8504.4.
8104.5 2CLA810450A1001 10
Product Article-No. Order-No. Pack/Qty
Switch 1-gang, 1-way, double pole 16A Push-button 1-gang, single pole, NC
Rated voltage: 110 - 250 Vac. Rated voltage: 110 - 250 Vac.
Rated current: 16 AX. Rated current: 10AX.
Screwless terminals. NC: normally closed.
Included: fixing claws. Screwless terminals.
Optional: locator/indicator LED lamp 6192 BL (230 Vac). Included: fixing claws.
Rocker code: 8501, 8501.2, 8501.3 & 8501.4.
Optional: locator LED lamp 6192 BL (230 Vac).
8101.1 2CLA810110A1001 10 Rocker code: 8501, 8501.3, 8504, 8504.2,
8504.3 & 8504.4.
Switch 1-gang, 1-way, double pole 8104.9 2CLA810490A1001 5
Rated voltage: 110 - 250 Vac.
Rated current: 10 AX.
Screwless terminals.
Included: fixing claws.
Optional: locator/indicator LED lamp 6192 BL (230 Vac).
Rocker code: 8501, 8501.2, 8501.3 & 8501.4.
8101.2 2CLA810120A1001 10
