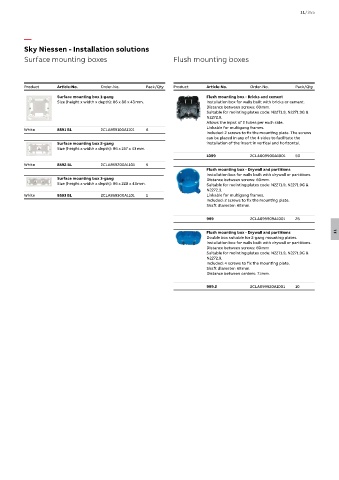

Page 1461 - Din prodcuts 2020

11/355

—
Sky Niessen - Installation solutions
Surface mounting boxes Flush mounting boxes

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Surface mounting box 1-gang Flush mounting box - Bricks and cement
Size (height x width x depth): 86 x 86 x 43 mm. Installation box for walls built with bricks or cement.
Distance between screws: 60 mm.
Suitable for mointing plates code: N2271.9, N2271.9G &
N2272.9.
Allows the input of 2 tubes per each side.
Linkable for multigang frames.
White 8591 BL 2CLA859100A1101 6
Included: 2 screws to fix the mounting plate. The screws
can be placed in any of the 4 sides to facilitate the
Surface mounting box 2-gang installation of the insert in vertical and horizontal.
Size (height x width x depth): 86 x 157 x 43 mm.
1099 2CLA009900A1001 50
White 8592 BL 2CLA859200A1101 5
Flush mounting box - Drywall and partitions
Installation box for walls built with drywall or partitions.
Surface mounting box 3-gang Distance between screws: 60 mm.
Size (height x width x depth): 86 x 228 x 43 mm. Suitable for mointing plates code: N2271.9, N2271.9G &
N2272.9.
White 8593 BL 2CLA859300A1101 1 Linkable for multigang frames.
Included: 2 screws to fix the mounting plate.
Shaft diameter: 68 mm.

999 2CLA099909A1001 25

Flush mounting box - Drywall and partitions 11
Double box suitable for 2-gang mounting plates.
Installation box for walls built with drywall or partitions.
Distance between screws: 60 mm
Suitable for mointing plates code: N2271.9, N2271.9G &
N2272.9.
Included: 4 screws to fix the mounting plate.
Shaft diameter: 68 mm.
Distance between centers: 71 mm.

999.2 2CLA099920A1001 10
