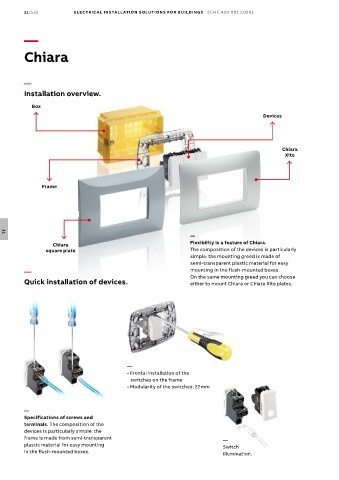

11/532 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

Chiara

—

Installation overview.

Box
Devices

Chiara
Xite

Frame

—
11
Chiara Flexibility is a feature of Chiara.
square plate The composition of the devices is particularly
simple: the mounting greed is made of
semi-transparent plastic material for easy
— mounting in the flush-mounted boxes.

Quick installation of devices. On the same mounting greed you can choose
either to mount Chiara or Chiara Xite plates.

—
• Frontal installation of the
switches on the frame
• Modularity of the switches: 22 mm

—
Specifications of screws and
terminals. The composition of the
devices is particularly simple: the
frame is made from semi-transparent —
plastic material for easy mounting Switch
in the flush-mounted boxes. illumination.
