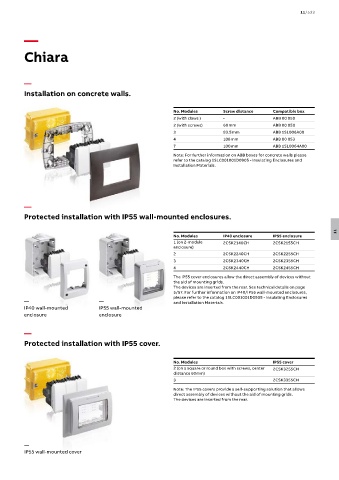

Page 1639 - Din prodcuts 2020

11/533

—

Chiara

—

Installation on concrete walls.

No. Modules Screw distance Compatible box
2 (with claws ) - ABB 00 050
2 (with screws) 60 mm ABB 00 050
3 83.5 mm ABB 1SL006A00
4 108 mm ABB 00 053
7 100 mm ABB 1SL0064A00
Note: For further information on ABB boxes for concrete walls please
refer to the catalog 1SLC001001D0905 - Insulating Enclosures and
Installation Materials.

—
Protected installation with IP55 wall-mounted enclosures.

11
No. Modules IP40 enclosure IP55 enclosure
1 (on 2-module 2CSK2140CH 2CSK2155CH
enclosure)
2 2CSK2240CH 2CSK2255CH
3 2CSK2340CH 2CSK2355CH
4 2CSK2440CH 2CSK2455CH
The IP55 cover enclosures allow the direct assembly of devices without
the aid of mounting grids.
The devices are inserted from the rear. See technical details on page
5/57. For further information on IP40/IP55 wall-mounted enclosures,
please refer to the catalog 1SLC001001D0905 - Insulating Enclosures
— — and Installation Materials.
IP40 wall-mounted IP55 wall-mounted
enclosure enclosure

—
Protected installation with IP55 cover.

No. Modules IP55 cover
2 (on a square or round box with screws, center 2CSK3255CH
distance 60mm)
3 2CSK3355CH
Note: The IP55 covers provide a self-supporting solution that allows
direct assembly of devices without the aid of mounting grids.
The devices are inserted from the rear.

—
IP55 wall-mounted cover
