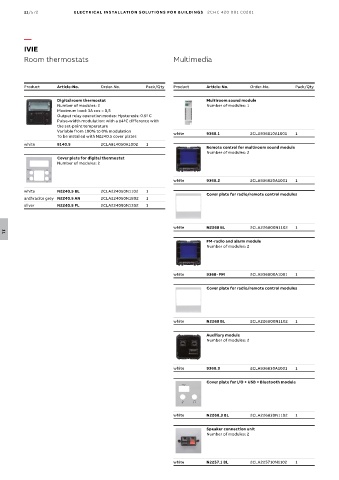

Page 1678 - Din prodcuts 2020

11/572 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
IVIE
Room thermostats Multimedia

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Digital room thermostat Multiroom sound module
Number of modules: 2 Number of modules: 1
Maximum load: 3A cos = 0,5
Output relay operation modes: Hysteresis: 0.5º C
Pulse-width modulation: with a ±4ºC difference with
the set-point temperature
Variable from 100% to 0% modulation
To be installed with N2240.5 cover plates white 9368.1 2CLA936810A1001 1
white 8140.5 2CLA814050A1002 1
Remote control for multiroom sound module
Number of modules: 2
Cover plate for digital thermostat
Number of modules: 2

white 9368.2 2CLA936820A1001 1
white N2240.5 BL 2CLA224050N1102 1
Cover plate for radio/remote control modules
anthracite grey N2240.5 AN 2CLA224050N1802 1
silver N2240.5 PL 2CLA224050N1302 1

white N2268 BL 2CLA226800N1102 1
11
FM-radio and alarm module
Number of modules: 2

white 9368- FM 2CLA936800A1001 1

Cover plate for radio/remote control modules

white N2268 BL 2CLA226800N1102 1

Auxiliary module
Number of modules: 2

white 9368.3 2CLA936830A1001 1

Cover plate for I/O + USB + Bluetooth module

white N2268.3 BL 2CLA226830N1102 1

Speaker connection unit
Number of modules: 2

white N2257.1 BL 2CLA225710N1102 1
