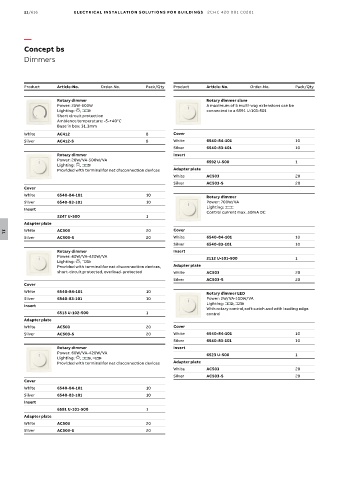

11/616 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Concept bs
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Rotary dimmer Rotary dimmer slave
Power: 25W-600W A maximum of 5 multi-way extensions can be
Lighting: , connected to a 6591 U-101-501
Short circuit protection
Ambience temperature: -5-+40°C
Base in box: 31.3mm
White AC412 8 Cover
Silver AC412-S 8 White 6540-84-101 10
Silver 6540-83-101 10
Rotary dimmer Insert
Power: 20W/VA-500W/VA 6592 U-500 1
Lighting: ,
Provided with terminal for net disconnection devices Adapter plate
White AC503 20
Silver AC503-S 20
Cover
White 6540-84-101 10 Rotary dimmer
Silver 6540-83-101 10 Power: 700W/VA
Lighting:
Insert
Control current max. 50mA DC
2247 U-500 1
Adapter plate
White AC503 20 Cover
11
Silver AC503-S 20 White 6540-84-101 10
Silver 6540-83-101 10
Rotary dimmer Insert
Power: 40W/VA-420W/VA 2112 U-101-500 1
Lighting: ,
Provided with terminal for net disconnection devices, Adapter plate
short-circuit protected, overload-protected White AC503 20
Silver AC503-S 20
Cover
White 6540-84-101 10 Rotary dimmer LED
Silver 6540-83-101 10 Power: 2W/VA-100W/VA
Lighting: ,
Insert
With rotary control,soft-catch and with leading edge
6513 U-102-500 1 control
Adapter plate
White AC503 20 Cover
Silver AC503-S 20 White 6540-84-101 10
Silver 6540-83-101 10
Rotary dimmer Insert
Power: 60W/VA-420W/VA 6523 U-500 1
Lighting: , ,
Provided with terminal for net disconnection devices Adapter plate
White AC503 20
Silver AC503-S 20
Cover
White 6540-84-101 10
Silver 6540-83-101 10
Insert
6591 U-101-500 1
Adapter plate
White AC503 20
Silver AC503-S 20
