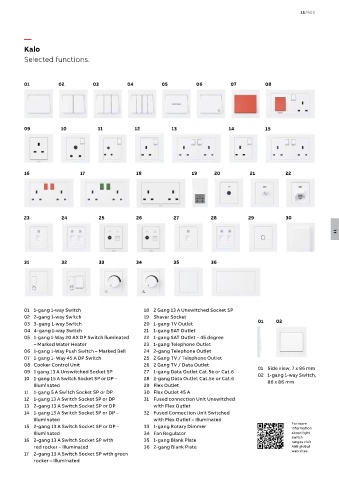

Kalo
Selected functions.

01 02 03 04 05 06 07 08

09 10 11 12 13 14 15

16 17 18 19 20 21 22

23 24 25 26 27 28 29 30

11

31 32 33 34 35 36

01 1-gang 1-way Switch 18 2 Gang 13 A Unswitched Socket SP
02 2-gang 1-way Switch 19 Shaver Socket
03 3-gang 1-way Switch 20 1-gang TV Outlet 01 02
04 4-gang 1-way Switch 21 1-gang SAT Outlet
05 1-gang 1-Way 20 AX DP Switch lluminated 22 1-gang SAT Outlet – 45 degree
– Marked Water Heater 23 1-gang Telephone Outlet
06 1-gang 1-Way Push Switch – Marked Bell 24 2-gang Telephone Outlet
07 1-gang 1- Way 45 A DP Switch 25 2 Gang TV / Telephone Outlet
08 Cooker Control Unit 26 2 Gang TV / Data Outlet 01 Side view, 7 x 86 mm
09 1 gang 13 A Unswitched Socket SP 27 1-gang Data Outlet Cat.5e or Cat.6 02 1-gang 1-way Switch,
10 1-gang 15 A Switch Socket SP or DP – 28 2-gang Data Outlet Cat.5e or Cat.6 86 x 86 mm
Illuminated 29 Flex Outlet
11 1-gang 5 A Switch Socket SP or DP 30 Flex Outlet 45 A
12 1-gang 13 A Switch Socket SP or DP 31 Fused connection Unit Unswitched
13 2-gang 13 A Switch Socket SP or DP with Flex Outlet
14 1-gang 13 A Switch Socket SP or DP – 32 Fused Connection Unit Switched
Illuminated with Flex Outlet – Illuminated
15 2-gang 13 A Switch Socket SP or DP – 33 1-gang Rotary Dimmer For more

information
Illuminated 34 Fan Regulator about light
16 2-gang 13 A Switch Socket SP with 35 1-gang Blank Plate switch
ranges visit
red rocker – Illuminated 36 2-gang Blank Plate ABB global
17 2-gang 13 A Switch Socket SP with green web sites.
rocker – Illuminated
