11/648 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

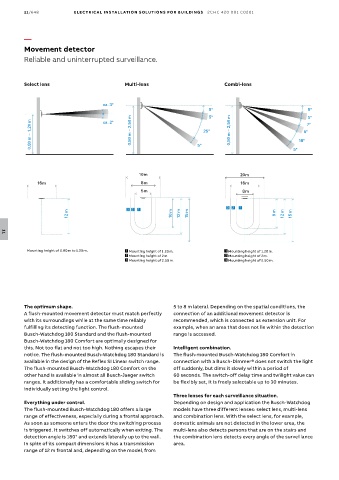

Movement detector
Reliable and uninterrupted surveillance.

Select lens Multi-lens Combi-lens

ca. 3°
5° 5°
5°
5°
0,80 m – 1,20 m ca. 2° 0,80 m – 2,50 m 5° 25° 0,80 m – 2,50 m 5° 18° 5° 7°

10m 20m
16m 8m 16m
5m 8m

3 2 1
3 2 1
12 m 10 m 12 m 15 m 9 m 12 m 15 m

11

Mounting height of 0.80 m to 1.20 m. Mounting height of 1.20 m. Mounting height of 1.20 m.
Mounting height of 2 m. Mounting height of 2 m.
Mounting height of 2.50 m. Mounting height of 2.50 m.

The optimum shape. 5 to 8 m lateral. Depending on the spatial conditions, the
A flush-mounted movement detector must match perfectly connection of an additional movement detector is
with its surroundings while at the same time reliably recommended, which is connected as extension unit. For
fulfilling its detecting function. The flush-mounted example, when an area that does not lie within the detection
Busch-Watchdog 180 Standard and the flush-mounted range is accessed.
Busch-Watchdog 180 Comfort are optimally designed for
this. Not too flat and not too high. Nothing escapes their Intelligent combination.
notice. The flush-mounted Busch-Watchdog 180 Standard is The flush-mounted Busch-Watchdog 180 Comfort in
available in the design of the Reflex SI Linear switch range. connection with a Busch-Dimmer® does not switch the light
The flush-mounted Busch-Watchdog 180 Comfort on the off suddenly, but dims it slowly within a period of
other hand is available in almost all Busch-Jaeger switch 60 seconds. The switch-off delay time and twilight value can
ranges. It additionally has a comfortable sliding switch for be flexibly set, it is freely selectable up to 30 minutes.
individually setting the light control.
Three lenses for each surveillance situation.
Everything under control. Depending on design and application the Busch-Watchdog
The flush-mounted Busch-Watchdog 180 offers a large models have three different lenses: select lens, multi-lens
range of effectiveness, especially during a frontal approach. and combination lens. With the select lens, for example,
As soon as someone enters the door the switching process domestic animals are not detected in the lower area, the
is triggered. It switches off automatically when exiting. The multi-lens also detects persons that are on the stairs and
detection angle is 180° and extends laterally up to the wall. the combination lens detects every angle of the surveillance
In spite of its compact dimensions it has a transmission area.
range of 12 m frontal and, depending on the model, from
