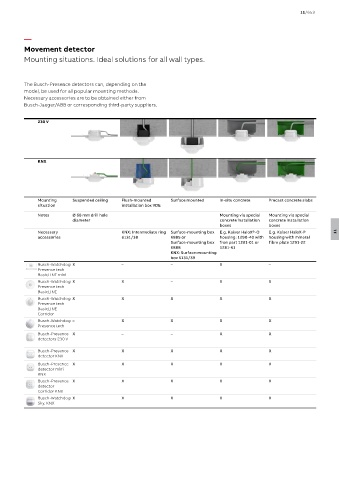

Movement detector
Mounting situations. Ideal solutions for all wall types.

The Busch-Presence detectors can, depending on the
model, be used for all popular mounting methods.
— Necessary accessories are to be obtained either from
Busch-Jaeger/ABB or corresponding third-party suppliers.
Busch-Watchdog Presence tech

Versatile due to modular construction. 230 V

KNX

Mounting Suspended ceiling Flush-mounted Surface mounted In-situ concrete Precast concrete slabs
situation installation box VDE

Notes Ø 68 mm drill hole Mounting via special Mounting via special
diameter concrete installation concrete installation
boxes boxes
Necessary KNX: Intermediate ring Surface-mounting box E.g. Kaiser HaloX®-O E.g. Kaiser HaloX-P 11
accessories 6131/38 6885 or housing: 1290-40 with housing with mineral
Surface-mounting box fron part 1281-01 or fibre plate 1291-22
6888 1281-61
KNX: Surface-mounting
— Busch-Watchdog X – box 6131/39 X –
–
Busch-Presence detectors KNX Presence tech
BasicLINE mini
Expertise always works. Almost Busch-Watchdog X X – X X
Presence tech
unnoticed. BasicLINE
Busch-Watchdog X X X X X
Presence tech
BasicLINE
Corridor
Busch-Watchdog – X X X X
Presence tech
Busch-Presence X – – X X
detectors 230 V
Busch-Presence X X X X X
detector KNX
Busch-Presence X X X X X
detector mini
KNX
Busch-Presence X X X X X
detector
Corridor KNX
Busch-Watchdog X X X X X
Sky, KNX
