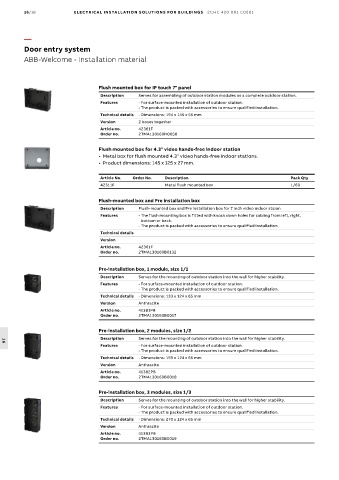

16/18 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Door entry system
ABB-Welcome - Installation material

Flush mounted box for IP touch 7'' panel
Description Serves for assembling of outdoor station modules as a complete outdoor station.
Features - For surface-mounted installation of outdoor station.
- The product is packed with accessories to ensure qualified installation.
Technical details - Dimensions: 194 x 145 x 55 mm
Version 2 boxes together
Article no. 42361F
Order no. 2TMA130160H0050

Flush mounted box for 4.3" video hands-free indoor station
• Metal box for flush mounted 4.3" video hands-free indoor stations.
• Product dimensions: 145 x 125 x 27 mm.

Article No. Order No. Description Pack Qty
42311F Metal flush mounted box 1/60

Flush-mounted box and Pre installation box
Description Flush-mounted box and Pre installation box for 7 inch video indoor staion
Features - The flush mounting box is fitted with knock down holes for cabling from left, right,
bottom or back.
- The product is packed with accessories to ensure qualified installation.
Technical details
Version
Article no. 42361F
Order no. 2TMA130160B0132

Pre-installation box, 1 module, size 1/1
Description Serves for the mounting of outdoor station into the wall for higher stability.
Features - For surface-mounted installation of outdoor station.
- The product is packed with accessories to ensure qualified installation.
Technical details - Dimensions: 133 x 124 x 65 mm
Version Anthracite
Article no. 41381PB
Order no. 2TMA130160B0017

Pre-installation box, 2 modules, size 1/2
Description Serves for the mounting of outdoor station into the wall for higher stability.
Features - For surface-mounted installation of outdoor station.
16
- The product is packed with accessories to ensure qualified installation.
Technical details - Dimensions: 199 x 124 x 65 mm
Version Anthracite
Article no. 41382PB
Order no. 2TMA130160B0018

Pre-installation box, 3 modules, size 1/3
Description Serves for the mounting of outdoor station into the wall for higher stability.
Features - For surface-mounted installation of outdoor station.
- The product is packed with accessories to ensure qualified installation.
Technical details - Dimensions: 270 x 124 x 65 mm
Version Anthracite
Article no. 41383PB
Order no. 2TMA130160B0019
