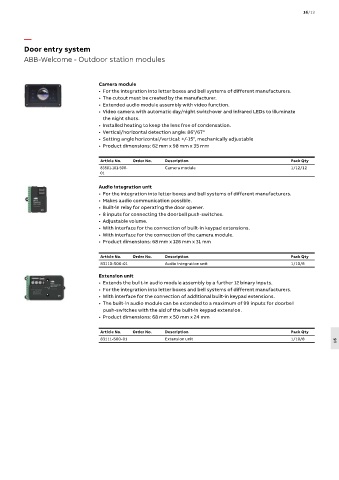

16/13

—
Door entry system
ABB-Welcome - Outdoor station modules

Camera module
• For the integration into letter boxes and bell systems of different manufacturers.
• The cutout must be created by the manufacturer.
• Extended audio module assembly with video function.
• Video camera with automatic day/night switchover and infrared LEDs to illuminate
the night shots.
• Installed heating to keep the lens free of condensation.
• Vertical/horizontal detection angle: 86°/67°
• Setting angle horizontal/vertical: +/-15°, mechanically adjustable
• Product dimensions: 62 mm x 98 mm x 35 mm

Article No. Order No. Description Pack Qty
83501-101-500- Camera module 1/12/12
01

Audio integration unit
• For the integration into letter boxes and bell systems of different manufacturers.
• Makes audio communication possible.
• Built-in relay for operating the door opener.
• 8 inputs for connecting the doorbell push-switches.
• Adjustable volume.
• With interface for the connection of built-in keypad extensions.
• With interface for the connection of the camera module.
• Product dimensions: 68 mm x 126 mm x 31 mm

Article No. Order No. Description Pack Qty
83110-500-01 Audio integration unit 1/10/8

Extension unit
• Extends the built-in audio module assembly by a further 12 binary inputs.
• For the integration into letter boxes and bell systems of different manufacturers.
• With interface for the connection of additional built-in keypad extensions.
• The built-in audio module can be extended to a maximum of 99 inputs for doorbell
push-switches with the aid of the built-in keypad extension.
• Product dimensions: 68 mm x 50 mm x 24 mm

Article No. Order No. Description Pack Qty
83111-500-01 Extension unit 1/10/8 16
