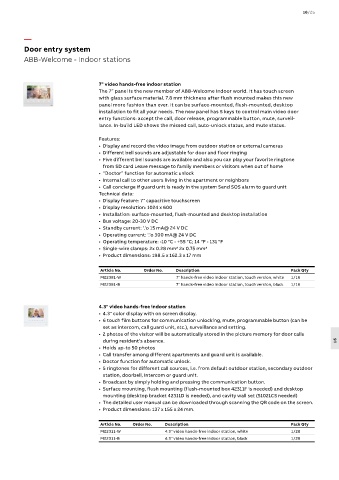

Door entry system
ABB-Welcome - Indoor stations

7" video hands-free indoor station
The 7” panel is the new member of ABB-Welcome indoor world. It has touch screen
with glass surface material. 7.8 mm thickness after flush mounted makes this new
panel more fashion than ever. It can be surface-mounted, flush-mounted, desktop
installa tion to fit all your needs. The new panel has 5 keys to control main video door
entry functions: accept the call, door release, programmable button, mute, surveil-
lance. In-build LED shows the missed call, auto-unlock status, and mute status.

Features:
• Display and record the video image from outdoor station or external cameras
• Different bell sounds are adjustable for door and floor ringing
• Five different bell sounds are available and also you can play your favorite ringtone
from SD card Leave message to family members or visitors when out of home
• “Doctor” function for automatic unlock
• Internal call to other users living in the apartment or neighbors
• Call concierge if guard unit is ready in the system Send SOS alarm to guard unit
Technical data:
• Display feature: 7" capacitive touchscreen
• Display resolution: 1024 x 600
• Installation: surface-mounted, flush-mounted and desktop installation
• Bus voltage: 20-30 V DC
• Standby current: ‘.’o 15 mA@ 24 V DC
• Operating current: ‘.’o 300 mA@ 24 V DC
• Operating temperature: -10 °C - +55 °C; 14 °F - 131 °F
• Single-wire clamps: 2x 0.28 mm2 2x 0.75 mm2
• Product dimensions: 198.5 x 162.3 x 17 mm

Article No. Order No. Description Pack Qty
M22381-W 7" hands-free video indoor station, touch version, white 1/16
M22381-B 7" hands-free video indoor station, touch version, black 1/16

4.3" video hands-free indoor station
• 4.3" color display with on screen display.
• 6 touch film buttons for communication unlocking, mute, programmable button (can be
set as intercom, call guard unit, etc.), surveillance and setting.
• 2 photos of the visitor will be automatically stored in the picture memory for door calls
during resident‘s absence. 16
• Holds up-to 50 photos
• Call transfer among different apartments and guard unit is available.
• Doctor function for automatic unlock.
• 5 ringtones for different call sources, i.e. from default outdoor station, secondary outdoor
station, doorbell, intercom or guard unit.
• Broadcast by simply holding and pressing the communication button.
• Surface mounting, flush mounting (flush-mounted box 42311F is needed) and desktop
mounting (desktop bracket 42311D is needed), and cavity wall set (51021CS needed)
• The detailed user manual can be downloaded through scanning the QR code on the screen.
• Product dimensions: 137 x 155 x 24 mm.

Article No. Order No. Description Pack Qty
M22311-W 4.3" video hands-free indoor station, white 1/28
M22311-B 4.3" video hands-free indoor station, black 1/28
