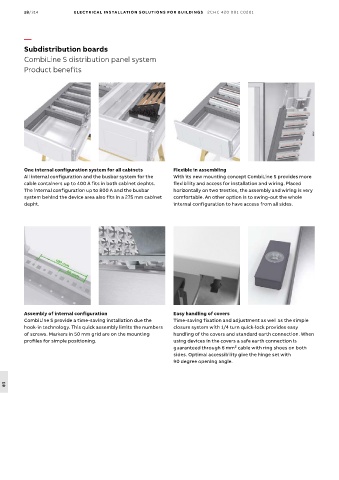

18/314 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
CombiLine S distribution panel system
Product benefits

One internal configuration system for all cabinets Flexible in assembling
All internal configuration and the busbar system for the With its new mounting concept CombiLine S provides more
cable containers up to 400 A fits in both cabinet dephts. flexibility and access for installation and wiring. Placed
The internal configuration up to 800 A and the busbar horizontally on two trestles, the assembly and wiring is very
system behind the device area also fits in a 275 mm cabinet comfortable. An other option is to swing-out the whole
depht. internal configuration to have access from all sides.

Assembly of internal configuration Easy handling of covers
CombiLine S provide a time-saving installation due the Time-saving fixation and adjustment as well as the simple
hook-in technology. This quick assembly limits the numbers closure system with 1/4 turn quick-lock provides easy
of screws. Markers in 50 mm grid are on the mounting handling of the covers and standard earth connection. When
profiles for simple positioning. using devices in the covers a safe earth connection is
guaranteed through 6 mm² cable with ring shoes on both
sides. Optimal accessibility give the hinge set with
90 degree opening angle.

18
