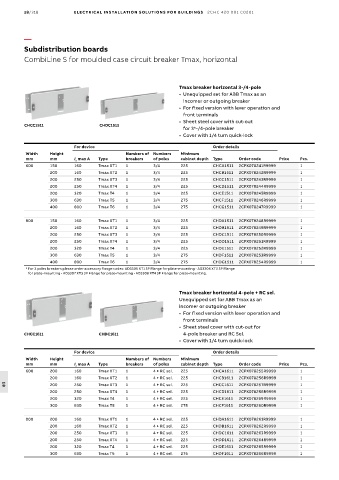

18/318 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
CombiLine S for moulded case circuit breaker Tmax, horizontal

Tmax breaker horizontal 3-/4-pole
• Unequipped set for ABB Tmax as an
incomer or outgoing breaker
• For fixed version with lever operation and
front terminals
• Sheet steel cover with cut-out
CHCC1511 CHDC1511
for 3*-/4-pole breaker
• Cover with 1/4 turn quick-lock

For device Order details
Width Height Numbers of Numbers Minimum
mm mm I max A Type breakers of poles cabinet depth Type Order code Price Pcs.
n
600 150 160 Tmax XT1 1 3/4 225 CHCA1511 2CPX078241R9999 1
200 160 Tmax XT2 1 3/4 225 CHCB1511 2CPX078242R9999 1
200 250 Tmax XT3 1 3/4 225 CHCC1511 2CPX078243R9999 1
200 250 Tmax XT4 1 3/4 225 CHCD1511 2CPX078244R9999 1
200 320 Tmax T4 1 3/4 225 CHCE1511 2CPX078245R9999 1
300 630 Tmax T5 1 3/4 275 CHCF1511 2CPX078246R9999 1
400 800 Tmax T6 1 3/4 275 CHCG1511 2CPX078247R9999 1

800 150 160 Tmax XT1 1 3/4 225 CHDA1511 2CPX078248R9999 1
200 160 Tmax XT2 1 3/4 225 CHDB1511 2CPX078249R9999 1
200 250 Tmax XT3 1 3/4 225 CHDC1511 2CPX078250R9999 1
200 250 Tmax XT4 1 3/4 225 CHDD1511 2CPX078251R9999 1
200 320 Tmax T4 1 3/4 225 CHDE1511 2CPX078252R9999 1
300 630 Tmax T5 1 3/4 275 CHDF1511 2CPX078253R9999 1
400 800 Tmax T6 1 3/4 275 CHDG1511 2CPX078254R9999 1
* For 3 poles breakers please order accessory flange codes: AD3305 XT1 3P Flange for plate-mounting - AD3306 XT2 3P Flange
for plate-mounting - AD3307 XT3 3P Flange for plate-mounting - AD3308 XT4 3P Flange for plate-mounting.

Tmax breaker horizontal 4-pole + RC sel.
Unequipped set for ABB Tmax as an
incomer or outgoing breaker
• For fixed version with lever operation and
front terminals
• Sheet steel cover with cut-out for
CHCC1611 CHDC1611 4-pole breaker and RC Sel.
• Cover with 1/4 turn quick-lock

For device Order details
Width Height Numbers of Numbers Minimum
mm mm I max A Type breakers of poles cabinet depth Type Order code Price Pcs.
n
600 200 160 Tmax XT1 1 4 + RC sel. 225 CHCA1611 2CPX078255R9999 1
200 160 Tmax XT2 1 4 + RC sel. 225 CHCB1611 2CPX078256R9999 1
200 250 Tmax XT3 1 4 + RC sel. 225 CHCC1611 2CPX078257R9999 1
18
200 250 Tmax XT4 1 4 + RC sel. 225 CHCD1611 2CPX078258R9999 1
200 320 Tmax T4 1 4 + RC sel. 225 CHCE1611 2CPX078259R9999 1
300 630 Tmax T5 1 4 + RC sel. 275 CHCF1611 2CPX078260R9999 1

800 200 160 Tmax XT1 1 4 + RC sel. 225 CHDA1611 2CPX078261R9999 1
200 160 Tmax XT2 1 4 + RC sel. 225 CHDB1611 2CPX078262R9999 1
200 250 Tmax XT3 1 4 + RC sel. 225 CHDC1611 2CPX078263R9999 1
200 250 Tmax XT4 1 4 + RC sel. 225 CHDD1611 2CPX078264R9999 1
200 320 Tmax T4 1 4 + RC sel. 225 CHDE1611 2CPX078265R9999 1
300 630 Tmax T5 1 4 + RC sel. 275 CHDF1611 2CPX078266R9999 1
