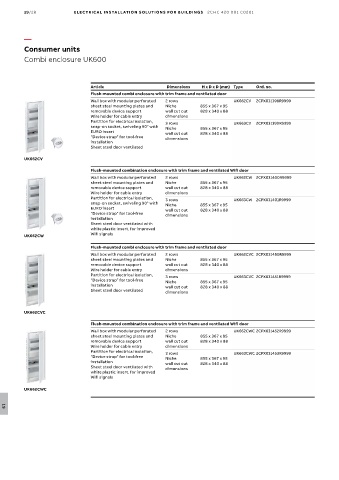

19/28 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Consumer units
Combi enclosure UK600

Article Dimensions H x D x D (mm) Type Ord. no.
Flush-mounted combi enclosure with trim frame and ventilated door
Wall box with modular perforated 2 rows UK662CV 2CPX031398R9999
sheet steel mounting plates and Niche 855 x 367 x 95
removable device support wall cut out 828 x 340 x 88
Wire holder for cable entry dimensions
Partition for electrical isolation, 3 rows UK663CV 2CPX031399R9999
snap-on socket, swiveling 90° with Niche 855 x 367 x 95
EURO insert wall cut out 828 x 340 x 88
“Device strap” for tool-free dimensions
installation
Sheet steel door ventilated
UK662CV

Flush-mounted combination enclosure with trim frame and ventilated Wifi door
Wall box with modular perforated 2 rows UK662CW 2CPX031400R9999
sheet steel mounting plates and Niche 855 x 367 x 95
removable device support wall cut out 828 x 340 x 88
Wire holder for cable entry dimensions
Partition for electrical isolation, 3 rows UK663CW 2CPX031401R9999
snap-on socket, swiveling 90° with Niche 855 x 367 x 95
EURO insert wall cut out 828 x 340 x 88
“Device strap” for tool-free dimensions
installation
Sheet steel door ventilated with
white plastic insert, for improved
UK662CW Wifi signals

Flush-mounted combi enclosure with trim frame and ventilated door
Wall box with modular perforated 2 rows UK662CVC 2CPX031450R9999
sheet steel mounting plates and Niche 855 x 367 x 95
removable device support wall cut out 828 x 340 x 88
Wire holder for cable entry dimensions
Partition for electrical isolation, 3 rows UK663CVC 2CPX031451R9999
“Device strap” for tool-free Niche 855 x 367 x 95
installation wall cut out 828 x 340 x 88
Sheet steel door ventilated
dimensions

UK662CVC
Flush-mounted combination enclosure with trim frame and ventilated Wifi door
Wall box with modular perforated 2 rows UK662CWC 2CPX031452R9999
sheet steel mounting plates and Niche 855 x 367 x 95
removable device support wall cut out 828 x 340 x 88
Wire holder for cable entry dimensions
Partition for electrical isolation, 3 rows UK663CWC 2CPX031453R9999
“Device strap” for tool-free Niche 855 x 367 x 95
installation wall cut out 828 x 340 x 88
Sheet steel door ventilated with dimensions
white plastic insert, for improved
Wifi signals

UK662CWC

19
