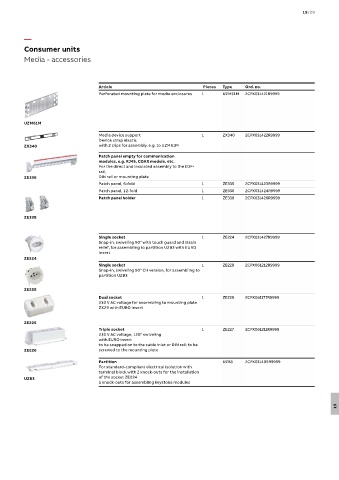

Consumer units
Media - accessories

Article Pieces Type Ord. no.
Perforated mounting plate for media enclosures 1 UZM61M 2CPX031421R9999

UZM61M

Media device support 1 ZX340 2CPX031422R9999
Device strap elastic
ZX340 with 2 clips for assembly, e.g. to UZM61M
Patch panel empty for communication
modules, e.g. RJ45, COAX module, etc.
For the direct and insulated assembly to the EDF-
rail,
ZE336 DIN rail or mounting plate
Patch panel, 6-fold 1 ZE335 2CPX031423R9999
Patch panel, 12-fold 1 ZE336 2CPX031424R9999
Patch panel holder 1 ZE338 2CPX031426R9999

ZE338

Single socket 1 ZE224 2CPX031427R9999
Snap-in, swiveling 90° with touch guard and strain
relief, for assembling to partition UZB3 with EURO
insert
ZE224
Single socket 1 ZE228 2CPX061212R9999
Snap-in, swiveling 90° CH version, for assembling to
partition UZB3

ZE228
Dual socket 1 ZE225 2CPX061177R9999
230 V AC voltage for assembling to mounting plate
ZX29 with EURO insert

ZE225
Triple socket 1 ZE227 2CPX061211R9999
230 V AC voltage, 120° swiveling
with EURO insert
to be snapped on to the cable inlet or DIN rail; to be
ZE226 screwed to the mounting plate

Partition UZB3 2CPX031409R9999
For standard-compliant electrical isolation with
terminal block with 2 knock-outs for the installation
UZB3 of the socket ZE224
5 knock-outs for assembling keystone modules

19
