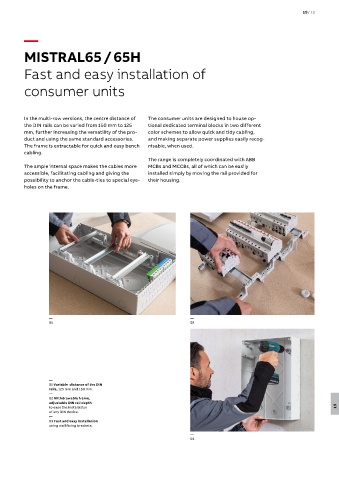

MISTRAL65 / 65H

Fast and easy installation of

consumer units

In the multi-row versions, the centre distance of The consumer units are designed to house op-
the DIN rails can be varied from 150 mm to 125 tional dedicated terminal blocks in two different
mm, further increasing the versatility of the pro- color schemes to allow quick and tidy cabling,
duct and using the same standard accessories. and making separate power supplies easily recog-
The frame is extractable for quick and easy bench nisable, when used.
cabling.
The range is completely coordinated with ABB
The ample internal space makes the cables more MCBs and MCCBs, all of which can be easily
accessible, facilitating cabling and giving the installed simply by moving the rail provided for
possibility to anchor the cable-ties to special eye- their housing.
holes on the frame.

— —
01 02

—
01 Variable distance of the DIN
rails, 125 mm and 150 mm.
—
02 Withdrawable frame,
adjustable DIN rail depth
to ease the installation 19
of any DIN device.
—
03 Fast and easy installation
using wall fixing brackets.
—
03
