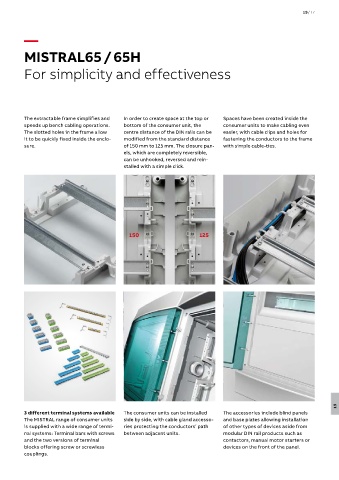

MISTRAL65 / 65H

For simplicity and effectiveness

The extractable frame simplifies and In order to create space at the top or Spaces have been created inside the
speeds up bench cabling operations. bottom of the consumer unit, the consumer units to make cabling even
The slotted holes in the frame allow centre distance of the DIN rails can be easier, with cable clips and holes for
it to be quickly fixed inside the enclo- modified from the standard distance fastening the conductors to the frame
sure. of 150 mm to 125 mm. The closure pan- with simple cable-ties.
els, which are completely reversible,
can be unhooked, revers ed and rein-
stalled with a simple click.

150 125

19
3 different terminal systems available The consumer units can be install ed The accessories include blind panels
The MISTRAL range of consumer units side by side, with cable gland accesso- and base plates allowing installation
is supplied with a wide range of termi- ries protecting the conductors’ path of other types of devices aside from
nal systems: Terminal bars with screws between adjacent units. modular DIN rail products such as
and the two versions of terminal contactors, manual motor starters or
blocks offering screw or screwless devices on the front of the panel.
couplings.
