20/3

—

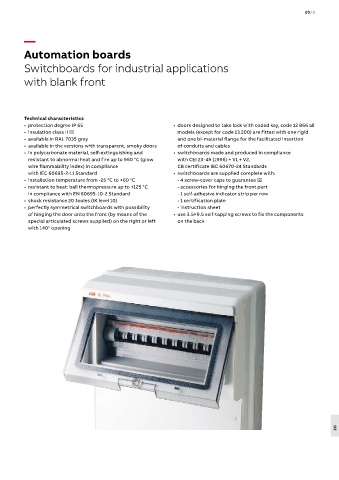

Automation boards

Switchboards for industrial applications
with blank front

Technical characteristics
• protection degree IP 65 • doors designed to take lock with coded key, code 12 866 all
• insulation class II , models (except for code 13 200) are fitted with one rigid
• available in RAL 7035 grey and one bi-material flange for the facilitated insertion
• available in the versions with transparent, smoky doors of conduits and cables
• in polycarbonate material, self-extinguishing and • switchboards made and produced in compliance
resistant to abnormal heat and fire up to 960 °C (glow with CEI 23-49 (1996) + V1 + V2,
wire flammability index) in compliance CB certificate IEC 60670-24 Standards
with IEC 60695-2-11 Standard • switchboards are supplied complete with:
• installation temperature from -25 °C to +60 °C - 4 screw-cover caps to guarantee ,
• resistant to heat: ball thermopressure up to +125 °C - accessories for hinging the front part
in compliance with EN 60695-10-2 Standard - 1 self-adhesive indicator strip per row
• shock resistance 20 Joules (IK level 10) - 1 certification plate
• perfectly symmetrical switchboards with possibility - instruction sheet
of hinging the door onto the front (by means of the • use 3.5×9.5 self-tapping screws to fix the components
special articulated screws supplied) on the right or left on the back
with 140° opening
